Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7708401 Harness Mc Appelez-nous -
1 M0110508 Clip Appelez-nous -
3 YB8358601 Bale Strap Appelez-nous -
4 B8352901 Clip Comp Appelez-nous -
5 C8960801 Term Cover Appelez-nous -
7 B5742601 Blade, Fan Appelez-nous -
8 A3072001 Sleeve K Appelez-nous -
9 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 7.55

10 B5759604 Gasket Appelez-nous -
12 C8982101 Bracket, Cond Motor Appelez-nous -
13 C8931503 Relay Appelez-nous -
15 C8906206 Overload Appelez-nous -
17 WPB2150504 Drier   (Replaces: B5715001) Special Order $ 136.98

18 833697 Motor, Fan   (Replaces: D7584001) In-Stock Immediately $ 88.15

19 R0168027 Kit, Defrost Timer   (Replaces: D7790402) In-Stock Immediately $ 159.86

20 D7736202 Compressor Hg111-1 Appelez-nous -
21 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

22 D7691002 Cond. Fan Shrd Appelez-nous -
23 D7690801 Timer Bracket Appelez-nous -
25 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

26 M0223803 Screw Appelez-nous -
27 M0221332 Screw, Shoulder Appelez-nous -
28 M0218118 Screw Appelez-nous -
30 M0500107 Grommet K Appelez-nous -
31 D7595409 Base Pan, Machine Compartment Appelez-nous -
32 B8346301 Spacer Cond. Appelez-nous -
33 D7654301 Condenser Pntd Appelez-nous -
34 M0293703 Speednut Appelez-nous -
36 A3261703 Grommet Per In. Appelez-nous -
37 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

38 M0103901 Clamp Appelez-nous -
39 WPW10662129 Capacitor   (Replaces: C8931602) In-Stock Immediately $ 58.86

40 C8931101 Shield-capacitor Appelez-nous -
41 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

43 B8358301 Spring, Overload Appelez-nous -
46 A9008301 Felt Appelez-nous -
47 M0253916 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

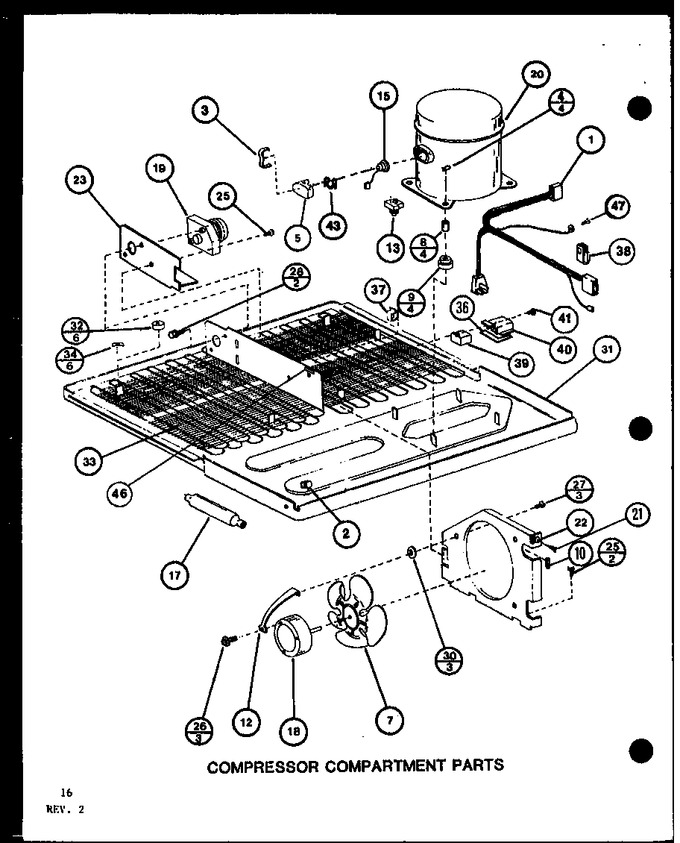

Diagram for BR20K (BOM: P7812502W)
