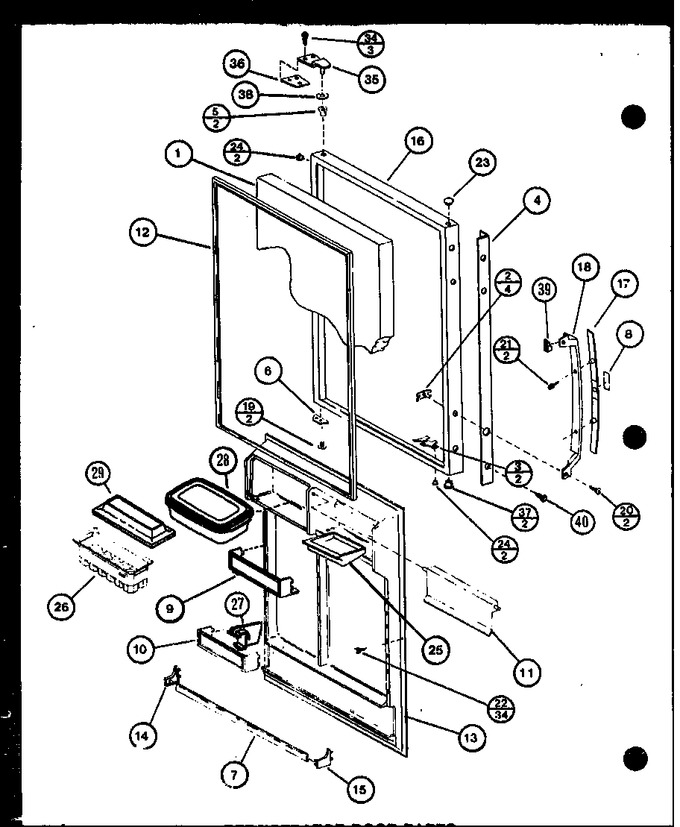

BR20K (BOM: P7812502W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	B5683516	Insulation, Bat	Appelez-nous	-
2	B8361401	Nut	Appelez-nous	-
3	B8363501	Nut	Appelez-nous	-
5	C3652901	Bushing, Hinge Pin	Appelez-nous	-
6	C8894802	Door Stop	Appelez-nous	-
7	C8907221	Retainer Pkg	Appelez-nous	-
8	C8945003	Nameplate	Appelez-nous	-
9	D7565408	Door Shelf	Appelez-nous	-
10	D7574508	Retainer Cant.	Appelez-nous	-
11	D7604417	Dairy Door	Appelez-nous	-
12	D7605116	Gasket, Door	Appelez-nous	-
13	D7677202	Inner Dr Panel, Ref	Appelez-nous	-
14	D7681803	Cap, Pkg Retainer End	Appelez-nous	-
15	D7681804	Cap, Pkg Retainer End	Appelez-nous	-
16	D7728304	Ref Door, White	Appelez-nous	-
16	D7728308	Ref Dr Foamd As Cfc11	Appelez-nous	-
16	D7728307	Door Ref G T Br20h	Appelez-nous	-
16	D7694703	Insert K	Appelez-nous	-
18	D7694802	Handle	Appelez-nous	-
19	M0203458	Screw	Appelez-nous	-
20	M0203858	Screw	Appelez-nous	-
21	WP8281236	Screw (counter Sunk) (Replaces: M0215704)			$ 8.16
22	M0219717	Screw	Appelez-nous	-
23	M0310601	Plug	Appelez-nous	-
23	M0310608	Plug	Appelez-nous	-
23	M0310606	Plug	Appelez-nous	-
24	M0311303	Plug Button	Appelez-nous	-
24	M0203931	Screw, Tf	Appelez-nous	-
24	M0311302	Plug Button	Appelez-nous	-
24	M0311301	Plug Button	Appelez-nous	-
25	D3799802	Butter Tray	Appelez-nous	-
26	D7695606	Egg Bucket	Appelez-nous	-
34	R9800670	Kit, Screw (Replaces: M0257244)			$ 10.58
35	B5744301	Hinge	Appelez-nous	-
36	A3270302	Shim-top Hinge K	Appelez-nous	-
36	A3270301	Shim, Top Hinge	Appelez-nous	-
36	A3270303	Shim Kit	Appelez-nous	-
37	C8852202	Bearing, Hinge	Appelez-nous	-
38	M0274049	Washer	Appelez-nous	-
39	B8372002	Spacer, Handle	Appelez-nous	-
39	B8372001	Spacer, Handle	Appelez-nous	-
	NOTE:	Ic3k/p7621310w Will Not Be Available In Kit Form Until Approximately April 1988.used In Usa, Canada, Or Factory Installed Ice Makers.	Appelez-nous	-
