Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Cabinet (not A Serviceable Part) Appelez-nous -
2 981128 Front Roller (2) Appelez-nous -
3 488681 Screw, 5/16-24 X 1 Appelez-nous -
4 WPW10250570 Roller, Rear (2)   (Replaces: 981122) Special Order $ 42.18

5 488454 Screw, (4) 1/4-28 X 1/2 Appelez-nous -
6 1106999 Mullion Rail Appelez-nous -
7 1106997 Heater, Mullion Appelez-nous -
8 1108400 Front Mullion Rail (white) Appelez-nous -
8 1108403 Front Mullion Rail (almond) Appelez-nous -
8 1108402 Front Mullion Rail (golden Harvest) Appelez-nous -
8 1108404 Front Mullion Rail (toast) Appelez-nous -
8 1108405 Front Mullion Rail (platinum) Appelez-nous -
9 1114646 Filler Top Mullion (white) Appelez-nous -
9 1114648 Filler Top Mullion (almond) Appelez-nous -
9 1114650 Filler Top Mullion (golden Harvest) Appelez-nous -
9 1114652 Filler Top Mullion (toast) Appelez-nous -
9 1114654 Filler Top Mullion (platinum) Appelez-nous -
10 1114655 Filler Bottom Mullion (platinum) Appelez-nous -
10 1114647 Filler Bottom Mullion (white) Appelez-nous -
10 1114649 Filler Bottom Mullion (almond) Appelez-nous -
10 1114651 Filler Bottom Mullion (golden Harvest) Appelez-nous -
10 1114653 Filler Bottom Mullion (toast) Appelez-nous -
11 1110607 Clip, Ground Appelez-nous -
12 1100513 Shim, Hinge Top Appelez-nous -
13 1100509 Shim, Top Hinge Appelez-nous -
14 1101314 Hole, Plug (toast) Appelez-nous -
14 989957 Hole, Plug (golden Harvest) Appelez-nous -
14 989958 Hole Plug (almond) Appelez-nous -
14 849391 Hole, Plug (white) Appelez-nous -
14 1101315 Hole, Plug (platinum) Appelez-nous -
15 1115356 Hole Plug (platinum) Appelez-nous -
15 1115355 Hole Plug (toast) Appelez-nous -
15 1115353 Hole Plug (golden Harvest) Appelez-nous -
15 1115354 Hole Plug (almond) Appelez-nous -
15 1115352 Hole Plug (white) Appelez-nous -
16 986763 Hinge Bottom (r.h) Appelez-nous -
17 WPW10329686 Door Closer Lower Cam (2)   (Replaces: 986759) In-Stock Immediately $ 5.90

18 WP486579 Screw, (2) 8-32 X 1/4   (Replaces: 487983) Special Order $ 7.89

19 986764 Hinge Bottom (l.h) Appelez-nous -
20 1105474 Spacer, Hinge Appelez-nous -
21 1110712 Filler, Wrapper (platinum) Appelez-nous -
21 1110708 Filler, Wrapper (white) Appelez-nous -
21 1110709 Filler, Wrapper (almond) Appelez-nous -
21 1110710 Filler, Wrapper (golden Harvest) Appelez-nous -
21 1110711 Filler, Wrapper (toast) Appelez-nous -
22 1106806 Grille Appelez-nous -
23 488949 Screw, 12-14 X 3/4 Appelez-nous -
23 WP999367 Screw, (4) 10-32 X 23/32   (Replaces: 489105) Special Order $ 8.56

24 WP944224 Grille Support (2)   (Replaces: 944224) Special Order $ 7.94

25 489173 Screw, (4) Appelez-nous -
26 546131 Bumper, Grille (2) Appelez-nous -
27 989068 Grille Retainer Appelez-nous -
28 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

31 836162 Tap Plate (2) Appelez-nous -
32 1110750 Cabinet Harness Appelez-nous -
33 WP250830 Screw, Ground   (Replaces: 489048) Special Order $ 8.78

34 937357 Clamp Appelez-nous -
35 WP489069 Screw   (Replaces: 693994) In-Stock Immediately $ 8.40

36 1108442 Cover, Wiring Appelez-nous -
37 1108440 Wiring Shield, Short Appelez-nous -
38 1108441 Wiring Shield, Long Appelez-nous -
39 1105607 Tube Clamp (2) Appelez-nous -
40 937360 Cord, Service Appelez-nous -
41 842258 Drain Ferrule Appelez-nous -
42 WP1108438 Tube, Extension   (Replaces: 1108438) In-Stock Immediately $ 32.90

43 WP1108439 Clip, Drain Tube   (Replaces: 1108439) Special Order $ 11.28

44 488978 Screw Appelez-nous -
45 1108443 Cover, Plug Appelez-nous -
46 1115321 Sealing Gasket Appelez-nous -
47 1105617 Cover, Unit Appelez-nous -
48 WPW10141645 Screw, (6) 8 X 1/2   (Replaces: 489084) Special Order $ 8.05

49 989896 Hinge Cover (golden Harvest) Appelez-nous -
49 1100173 Hinge Cover (platinum) Appelez-nous -
49 1100172 Hinge Cover (toast) Appelez-nous -
49 989194 Hinge Cover (almond) Appelez-nous -
49 842010 Hinge Cover (white) Appelez-nous -
50 836372 Insert, Air Baffle Appelez-nous -
51 1118236 Insulation Appelez-nous -
52 549193 Clamp-service Cord Special Order $ 14.06

53 548745 Clip, Wire Appelez-nous -
54 WP2187501 Wiring Harness (ice Maker)   (Replaces: 944811) Special Order $ 119.45


    View Diagram in Separate Window     Print Icon   Print Part List

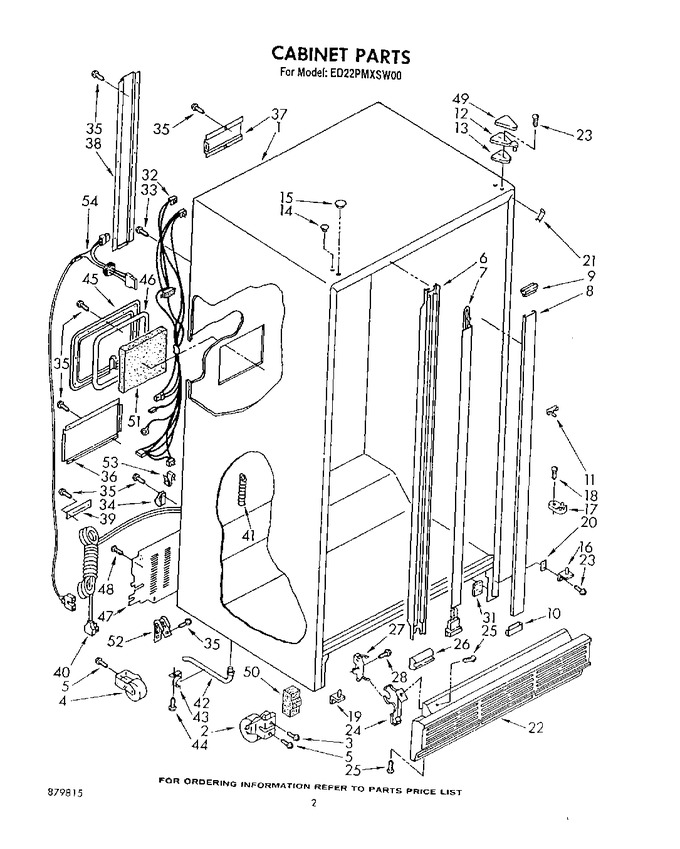

Diagram for ED22PMXSW00
