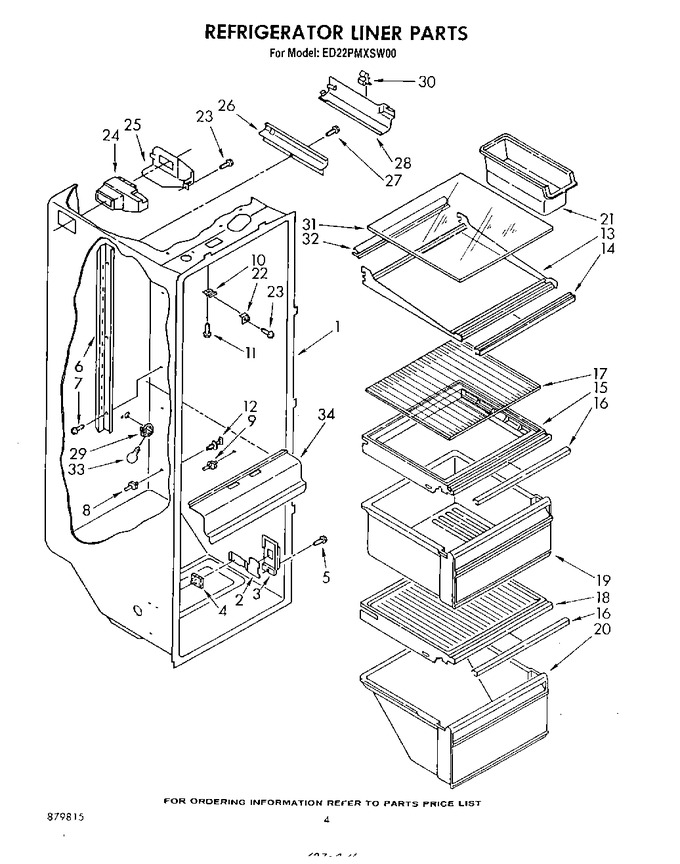

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	1108433		Ladder, Shelf (2)		Appelez-nous	-
7	WP488729		Screw, (6) 8 X 1/2   (Replaces: 487539)			Immediately	$ 8.28
8	4388538		Stud, Rear (4)   (Replaces: 1110718)			Immediately	$ 32.85
9	1115290		Stud, Front (4)				$ 7.61
10	1110706		Clip (2)		Appelez-nous	-
11	WP965173		Screw, (2)   (Replaces: 487358)			Immediately	$ 11.87
12	4388538		Stud   (Replaces: 1115382)			Immediately	$ 32.85
13	1114304		Shelf Cantilever		Appelez-nous	-
14	1114302		Trim, Shelf (3)		Appelez-nous	-
15	WP1126289		Crisper Cover   (Replaces: 1114620)				$ 190.80
16	1110795		Trim, Cover		Appelez-nous	-
17	1110794		Glass, Shelf		Appelez-nous	-
18	WP2148298		Cover, Meat Pan   (Replaces: 1114621)				$ 183.32
19	1114618		Pan, Crisper		Appelez-nous	-
20	1114619		Meat Pan		Appelez-nous	-
21	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
22	1110705		Bracket Retainer		Appelez-nous	-
23	W11624204		Screw (2) 8 X 1/2   (Replaces: 486194)				$ 14.72
24	WPW10151374		Air Diffuser Assembly   (Replaces: 1108447)			Immediately	$ 104.77
25	2152019		Air Diffuser Cover   (Replaces: 1110520)				$ 90.33
26	1114658		Cover, Conduit		Appelez-nous	-
27	WP488163		Screw, 8 X 3/4   (Replaces: 488248)				$ 7.92
28	1114659		Cover, Wiring		Appelez-nous	-
29	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
30	2215823		Clip, Air Duct   (Replaces: 1114603)				$ 10.94
31	1114307		Glass, Shelf		Appelez-nous	-
32	1114306		Reflector		Appelez-nous	-
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1114624		Light Lens		Appelez-nous	-
