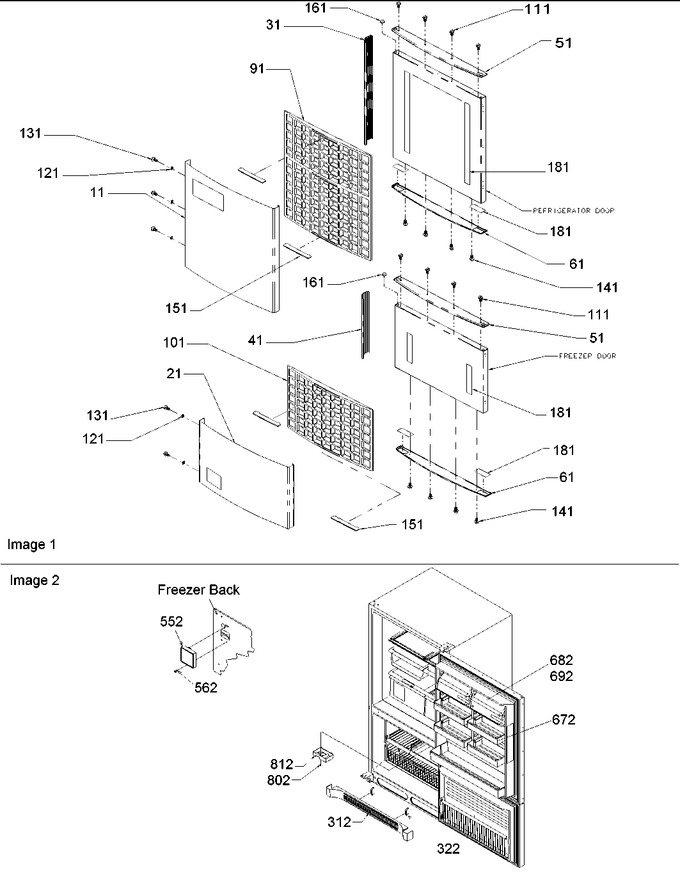

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12481102 | Panel, (e) Contour Ref |
|
- | |||||
| 21 | 12481105 | Panel, (e) Contour Frz |
|
- | |||||
| 31 | 12500701B | Handle, Ref Dr (blk) |
|
- | |||||
| 41 | 12500702B | Handle, Frz Dr (blk) |
|
- | |||||
| 51 | 12481302 | Cap, (e) Top Door |
|
- | |||||
| 61 | 12481402 | Cap, (e) Bottom Door |
|
- | |||||
| 91 | 12500402 | Spacer, Contour Ref Door |
|
- | |||||
| 101 | 12500401 | Spacer, Contour Frz Door |
|
- | |||||
| 111 | M0229544 | Screw, Sm (blk) |
|
- | |||||
| 121 | 12315103 | Clip, Extra Handle |
|
- | |||||
| 131 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 141 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 151 | 12510101 | Support, Door Skin |
|
- | |||||
| 161 | 12098904 | Plug, Trim (blk) |
|
- | |||||
| 181 | R0195044 | Tape, Adhesive 9 Ft Roll |
|
- | |||||
| 312 | 12045103 | Grille, Toe (blk) |
|
- | |||||
| 322 | 10551502 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 552 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 562 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 672 | 10420007 | Shelf, Ref Door |
|
- | |||||
| 682 | 12163303 | Door, Dairy |
|
- | |||||
| 692 | 12163202 | Shelf, Dairy |
|
- | |||||
| 802 | M0216531 | Screw |
|
- | |||||
| 812 | D7878825 | Cover, Frz Cont |
|
- |
