SELECT A DIAGRAM

01 - Bottom Hinges & Rollers


02 - Cabinet Back


03 - Condenser & Timer Box Assy


04 - Contour Panels, Handles & Grille


05 - Control, Hinges & Shields


06 - Crisper & Deli Frame Assy

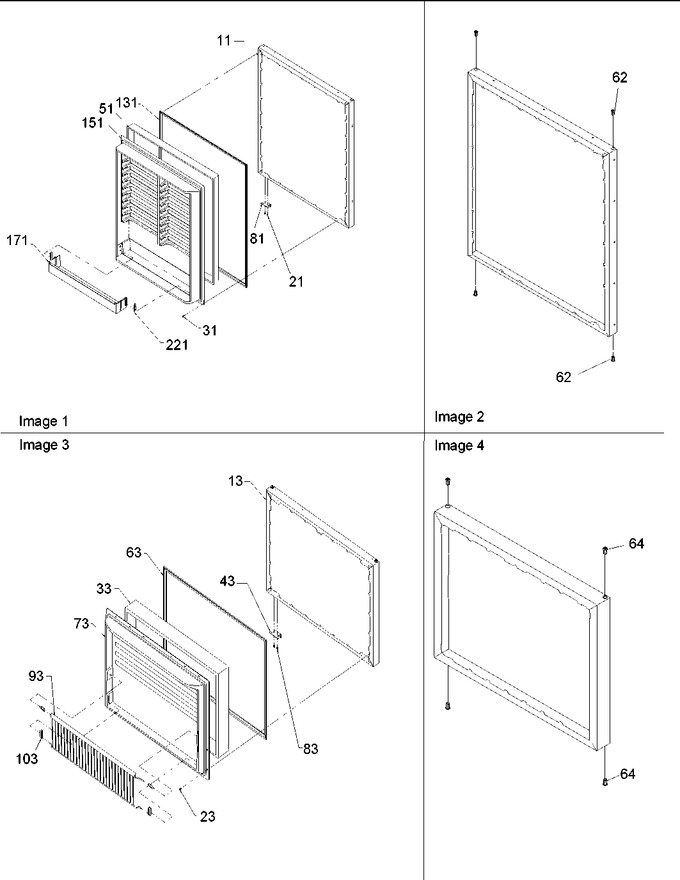

07 - Door Assy


08 - Evaporator Area


09 - Ice Maker Assy & Parts


10 - Machine Compartment


11 - Miscellaeous Information


12 - Shelf Ladders & Light Assy


13 - Shelving


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12082508B		Assy, Ref Door Foam (blk)		Appelez-nous	-
13	12081708B		Assy, Frz Door Foam (blk)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
23	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
33	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
43	12051009		Stop, Door (blk)		Appelez-nous	-
51	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
62	10961002		Bushing, Door (blk)		Appelez-nous	-
63	WP12550107Q		Gasket, Frz Dr (blk)   (Replaces: 12550107)				$ 315.30
64	C8964402		Bushing, Top		Appelez-nous	-
73	12031501		Liner, Frz Door		Appelez-nous	-
81	W11708403		Stop, Door (blk)   (Replaces: 12051012)			Immediately	$ 14.75
83	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
93	12051601		Retainer, Package		Appelez-nous	-
103	12051501		Glide, Frz Dr Rack		Appelez-nous	-
131	12550106		Gasket, Ref Dr (blk)		Appelez-nous	-
151	12031401		Liner, Ref Door		Appelez-nous	-
171	10609805		Retainer, Ref Door		Appelez-nous	-
221	10202001		Clip, Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
