Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2174046 Shelf, Cantilever (2) Appelez-nous -
3 W10508993 Cover, Crisper   (Replaces: 2179261) Special Order $ 291.29

5 W10864399 Glass, Meat Cover   (Replaces: 2179259) Special Order $ 220.98

6 2179350 Deflector Special Order $ 81.80

7 W10864399 Glass, Crisper Cover   (Replaces: 2174441) Special Order $ 220.98

8 W10508993 Cover, Meat Pan   (Replaces: 2182710) Special Order $ 291.29

10 WP2188661 Pan, Crisper   (Replaces: 2179278) In-Stock Immediately $ 162.07

11 WP2188664 Meat Pan   (Replaces: 2179279) In-Stock Immediately $ 85.30

12 W10136387A Bin, Egg   (Replaces: 2169933) Special Order $ 18.61

13 2169935 Cover Appelez-nous -
15 2174485 Shelf, Snack Bin Appelez-nous -
18 W11497323 Snack Bin   (Replaces: 2179280) Special Order $ 223.66

20 4388538 Shelf Stud   (Replaces: 1110718) In-Stock Immediately $ 31.34

21 4388539 Shelf Stud   (Replaces: 2172943) Special Order $ 17.54

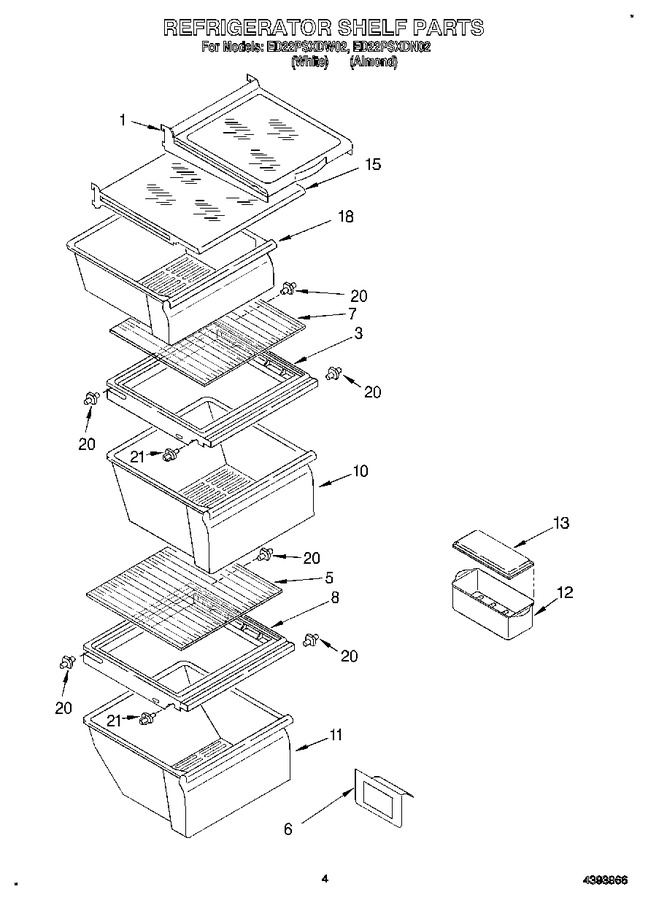

    View Diagram in Separate Window     Print Icon   Print Part List
