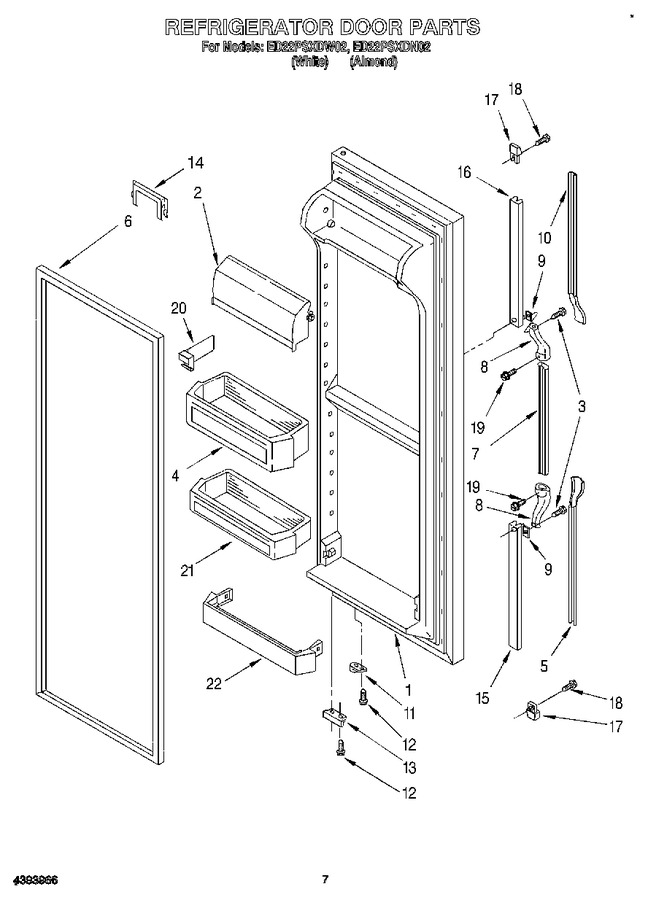

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171086		Refrigerator Door (includes No.6) (white)		Appelez-nous	-
1	2171087		Refrigerator Door (includes No.6) (almond)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2170967)			Immediately	$ 85.16
3	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
4	2170614		Shelf Bin (2)		Appelez-nous	-
5	1119363		Insert, Handle (almond)		Appelez-nous	-
5	1119361		Insert, Handle (white)		Appelez-nous	-
6	2159073		Door Gasket, Magnetic (service)				$ 317.32
7	943079		Handle, Center (almond)		Appelez-nous	-
7	1124713		Handle, Center (white)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	1119367		Insert, Handle (white)		Appelez-nous	-
10	1119369		Insert, Handle (almond)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2155331		Bracket, Door Stop		Appelez-nous	-
14	2163566		Retainer, Bottle		Appelez-nous	-
15	1119360		Retainer, Insert (bottom)		Appelez-nous	-
16	1119366		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	489022		Screw		Appelez-nous	-
20	2152335		Divider, Bin		Appelez-nous	-
21	2170613		Shelf Bin		Appelez-nous	-
22	4210445		Woodgrain Handle Insert		Appelez-nous	-
22	WP2177962K		Trivet, Shelf   (Replaces: 2171165)				$ 81.09
22	4318948		Trimless Black Decor Panel		Appelez-nous	-
22	4319080		Black Handle Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
