Diagram # Part Number Description Series Availability Ships Price Add to Cart
14 D7716410 Housing-ref Light Appelez-nous -
15 D7863903 Housing Freezer Light Appelez-nous -
24 D7845101 Socket, Lamp Appelez-nous -
25 D7845102 Socket, Lamp Appelez-nous -
33 D7599002 Ladder, Center Appelez-nous -
34 A4539626 Pop Rivet Appelez-nous -
35 M0320910 Term Appelez-nous -
43 D7599105 Ladder, Side Appelez-nous -
44 12099701 Harness-ref Light Appelez-nous -
45 A4539626 Pop Rivet Appelez-nous -
54 M0217225 Screw Appelez-nous -
55 M0217224 Screw Appelez-nous -
64 D7844803 Socket Shield Appelez-nous -
65 A1781112 Cap-vinyl Tube Appelez-nous -
74 M0320905 Terminal Ground A Appelez-nous -
82 W10815413 Funnel, Drain   (Replaces: D7753902) In-Stock Immediately $ 51.50

84 A4554813 Snap Bushing Appelez-nous -
91 WP67001130 Plug, Button (wht)   (Replaces: M0310701) In-Stock Immediately $ 5.98

93 M0231426 Screw Appelez-nous -
94 A1781112 Cap-vinyl Tube Appelez-nous -
122 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

142 WPB8381501 Gasket, Drain Tube   (Replaces: B8381501) Special Order $ 7.78

151 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

162 WPM0500703 Seal, O Ring   (Replaces: M0500703) Special Order $ 11.47

183 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

222 10649702 Housing, Frz. Cont. Appelez-nous -
231 M0586401 Grommet-screw Appelez-nous -
253 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

293 M0586401 Grommet-screw Appelez-nous -
332 12056101 Cover, Frz Light Sw Appelez-nous -
342 W11384469 Switch, Light   (Replaces: C3680310) In-Stock Immediately $ 39.09


    View Diagram in Separate Window     Print Icon   Print Part List

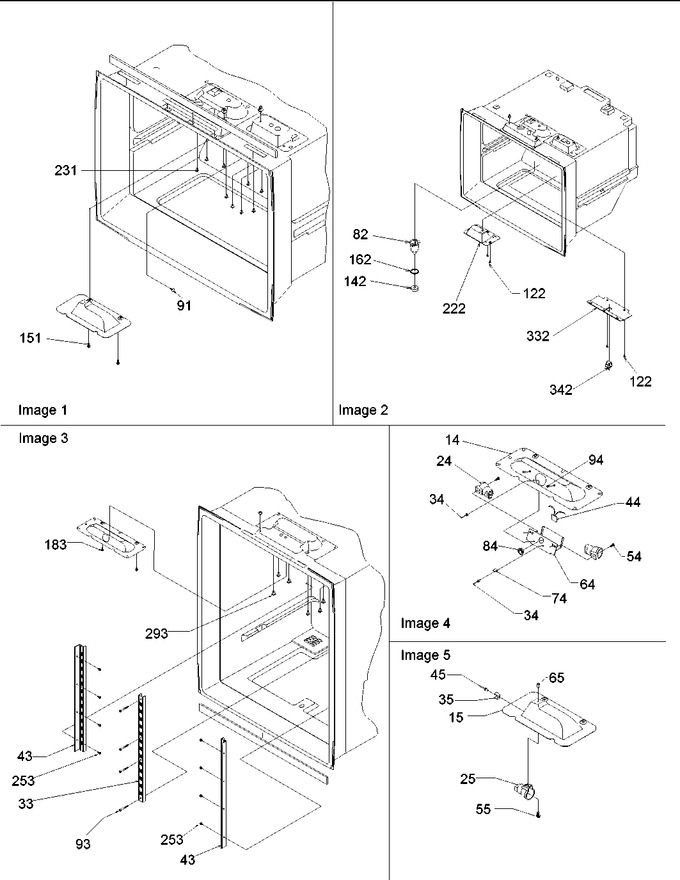

Diagram for BRF520TW (BOM: P1301501W W)
