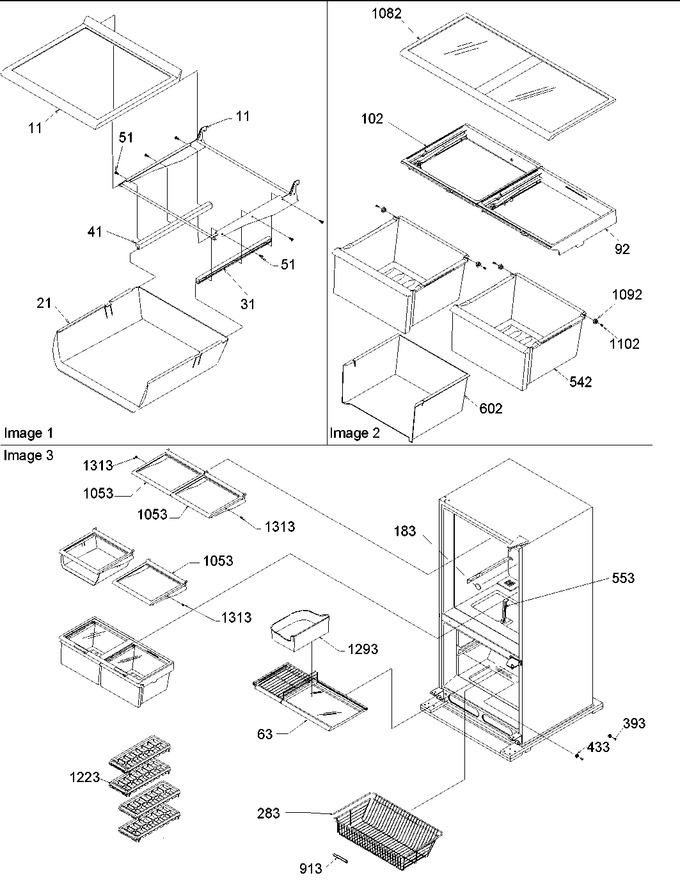

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12024802		Shelf, Party Tray		Appelez-nous	-
21	12046001		Tray, Party		Appelez-nous	-
31	12046101		Glide, Party (lt)		Appelez-nous	-
41	12046102		Glide, Party (rt)		Appelez-nous	-
51	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
63	12095001		Assy, Freezer Shelf		Appelez-nous	-
92	12079902		Crisp Frame Assy		Appelez-nous	-
102	12079901		Assy, Ref Deli		Appelez-nous	-
183	M0310342		Plug, Button (wht)		Appelez-nous	-
283	12053501		Basket, Freezer		Appelez-nous	-
393	WP67006908		Screw   (Replaces: M0230919)			Immediately	$ 8.78
433	10972101		Spacer, Ice Rack				$ 7.82
542	12032001		Pan, Crisper		Appelez-nous	-
553	10461902		Post-crisp Supp				$ 26.54
602	12045201		Sleeve, Mk		Appelez-nous	-
913	10508502		Handle-basket		Appelez-nous	-
1053	12024801		Shelf, Glide		Appelez-nous	-
1082	12024902		Shelf, Top Crisper		Appelez-nous	-
1092	10481001		Roller, Pan				$ 10.99
1102	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
1223	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
1293	12045501		Pan, Ice		Appelez-nous	-
1313	10875101		Stop, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
