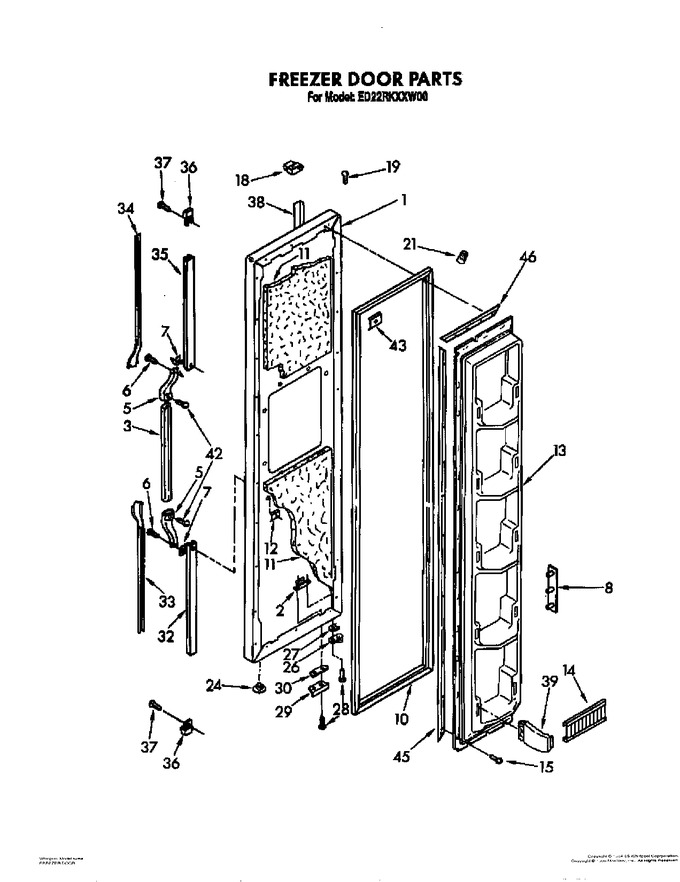

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362017		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	1124713		Handle, Center		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 7.67
7	935075		Shim, End Cap (2)		Appelez-nous	-
8	1116986		Pin Plate (6)				$ 12.10
10	2188405A		Door Gasket, Magnetic   (Replaces: 1125926)				$ 351.08
11	876029		Foam Insulation		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1129241		Panel, Interior Door		Appelez-nous	-
14	2157023		Trim, Door Shelf		Appelez-nous	-
15	WP489069		Screw, 7 X 1/2 (28)   (Replaces: 489101)			Immediately	$ 7.86
15	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
18	936183		Connector, Plug		Appelez-nous	-
19	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 6.74
21	227991		Wire Connector		Appelez-nous	-
24	534927		Hole Plug (2)		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 27.36
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
28	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
29	988420		Bracket, Door Stop		Appelez-nous	-
30	988421		Shim		Appelez-nous	-
32	1119360		Retainer, Insert		Appelez-nous	-
33	1119361		Insert, Handle		Appelez-nous	-
34	1119367		Insert, Handle		Appelez-nous	-
35	1119366		Retainer, Insert		Appelez-nous	-
36	2156220		End Cap (2)		Appelez-nous	-
37	489075		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
38	1119061		Trim, Door		Appelez-nous	-
39	WP2196100		End Cap, Trim   (Replaces: 1110719)			Immediately	$ 8.66
42	489022		Screw, 6-20 X 3/8 (4)		Appelez-nous	-
43	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.50
45	1117766		Gasket Retainer, Side (2)				$ 36.55
46	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
