SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Air Flow

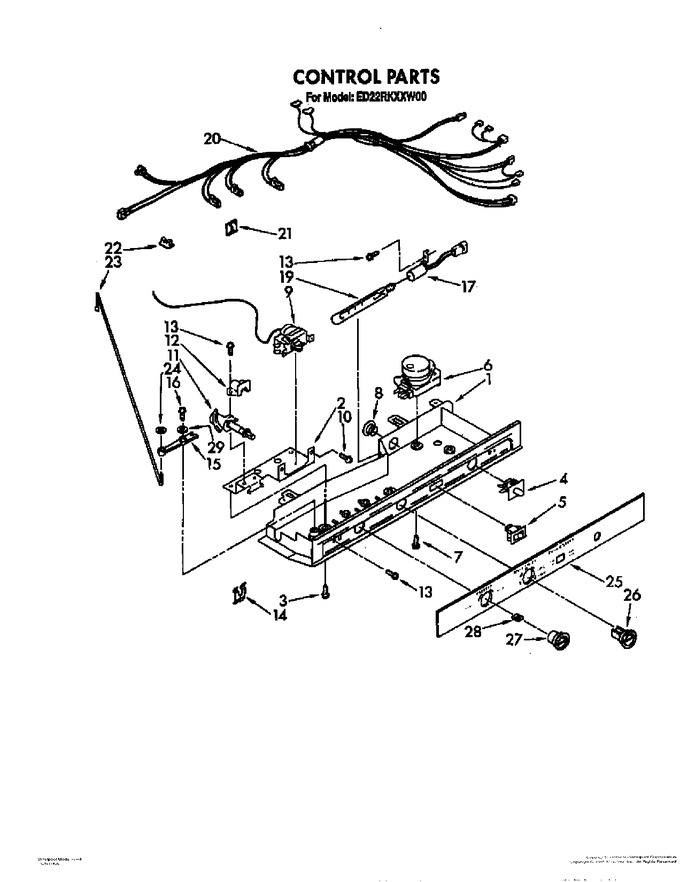

10 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1129413		Control Box		Appelez-nous	-
2	1110629		Mounting Bracket		Appelez-nous	-
3	489190		Screw (2)		Appelez-nous	-
4	WP2149705		Light Switch   (Replaces: 1123923)			Immediately	$ 40.40
5	938049		Switch, Lighted Power Miser		Appelez-nous	-
6	CC901		Defrost Timer, (10 Hr.)   (Replaces: 1127570)			Immediately	$ 58.27
7	489392		Screw (2)   (Replaces: 489192)				$ 13.35
8	940014		Hole Plug				$ 18.33
9	WP2198202		Thermostat Assembly   (Replaces: 1115244)			Immediately	$ 78.43
10	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 487869)			Immediately	$ 10.72
11	1110566		Cam Assembly		Appelez-nous	-
12	1110560		Bearing Body				$ 10.76
13	WP489478		Screw   (Replaces: 489242)				$ 7.75
14	938439		Retainer, Damper		Appelez-nous	-
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 12.12
17	1110690		Light Socket		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 548049)				$ 86.35
20	2149750		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	1123960		Connecting Rod				$ 6.81
24	489285		Fastener, Push-on		Appelez-nous	-
25	2148238		Escutcheon, Control Box		Appelez-nous	-
26	1116852		Knob, Thermostat		Appelez-nous	-
27	1116853		Knob, Air Control		Appelez-nous	-
28	837444		Knob, Retainer		Appelez-nous	-
29	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
29	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
29	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
29	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
29	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
29	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
29	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
29	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
29	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
29	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
29	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
29	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
29	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
29	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
29	833938		Kit, Terminal Connector				$ 8.07
29	515393		Transformer (115-230 Volt)		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
29	350942		Primer White (13 Oz. Spray Can)				$ 89.66
29	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
29	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
29	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
29	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
29	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
29	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2157014		Use & Care Guide		Appelez-nous	-
	LIT2149924		Service & Wiring Sheet		Appelez-nous	-
	LIT2157016		Energy Label		Appelez-nous	-
	LIT4361058		Parts List		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
