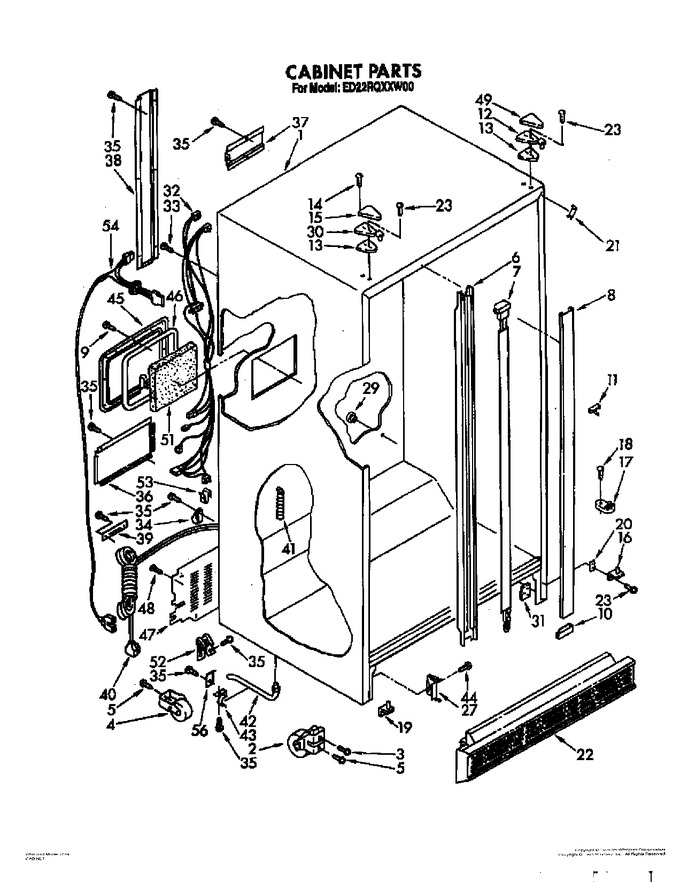

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Front Roller (2)		Appelez-nous	-
3	489333		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw, 1/4-28 X 1/2 (4)   (Replaces: 489339)				$ 7.47
6	1118354		Mullion Rail		Appelez-nous	-
7	1106997		Heater, Mullion		Appelez-nous	-
8	1123966		Front Mullion Rail		Appelez-nous	-
9	WP489464		Screw (11)   (Replaces: 489337)			Immediately	$ 7.83
10	1118361		Filler Bottom Mullion		Appelez-nous	-
11	1110607		Clip, Ground		Appelez-nous	-
12	1123514		Hinge, Top		Appelez-nous	-
13	1123515		Shim, Hinge Top				$ 6.58
14	489284		Screw, Bind		Appelez-nous	-
15	987191		Hinge Cover		Appelez-nous	-
16	2151629		Hinge Bottom (r.h)		Appelez-nous	-
17	4318165		Door Closer, Lower Cam (2)   (Replaces: 1104788)			Immediately	$ 29.74
18	WP489399		Screw (2)   (Replaces: 489358)				$ 6.95
19	2151630		Hinge Bottom (l.h)		Appelez-nous	-
20	836196		Shim .030		Appelez-nous	-
20	1129868		Spacer, Hinge		Appelez-nous	-
21	1110708		Filler, Wrapper		Appelez-nous	-
22	2147467		Grille		Appelez-nous	-
23	489327		Screw		Appelez-nous	-
27	WP2155013		Clip, Grille Retainer (2)   (Replaces: 1114789)			Immediately	$ 7.72
29	1129178		Grommet		Appelez-nous	-
30	1123510		Hinge, Top (l.h.)		Appelez-nous	-
31	2147310		Tap Plate (2)		Appelez-nous	-
32	2149745		Cabinet Harness		Appelez-nous	-
33	WP250830		Screw, Ground   (Replaces: 489048)				$ 7.95
34	937357		Clamp		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
36	1129193		Cover, Wiring		Appelez-nous	-
37	1108440		Wiring Shield, Short		Appelez-nous	-
38	1108441		Wiring Shield, Long		Appelez-nous	-
39	1105607		Tube Clamp (2)		Appelez-nous	-
40	937360		Cord, Service		Appelez-nous	-
41	842258		Drain Ferrule		Appelez-nous	-
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
44	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
45	1108443		Cover, Plug		Appelez-nous	-
46	1115321		Sealing Gasket		Appelez-nous	-
47	2147329		Cover, Unit		Appelez-nous	-
48	WPW10141645		Screw, 8 X 1/2 (6)   (Replaces: 489084)				$ 7.67
49	1119787		Hinge Cover				$ 22.50
51	1118236		Insulation		Appelez-nous	-
52	549193		Clamp-service Cord				$ 14.06
53	548745		Clip, Wire		Appelez-nous	-
54	WP2187501		Wiring Assembly (icemaker)   (Replaces: 1129189)				$ 113.76
56	836472		Clamp, Water Line (2)		Appelez-nous	-
