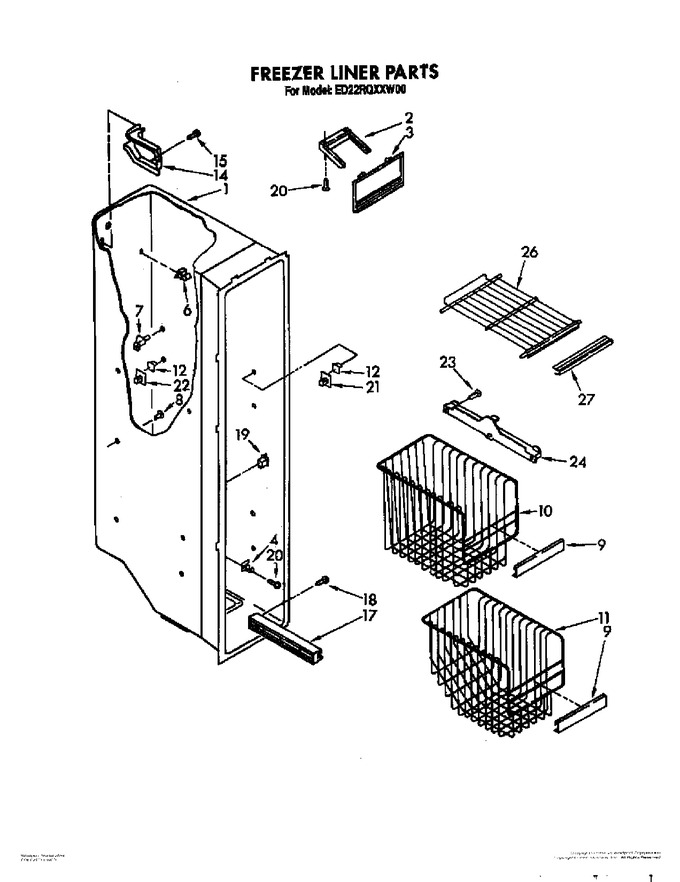

05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2149091		Door, Ice Compartment		Appelez-nous	-
4	1108436		Evaporator, Support		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	1115317		Support, Stud (4)		Appelez-nous	-
8	1110779		Grommet (2)		Appelez-nous	-
9	2149088		Trim, Basket		Appelez-nous	-
10	2152087		Basket, Tall		Appelez-nous	-
11	2152089		Basket, Slope		Appelez-nous	-
12	946355		Support Stud (4)		Appelez-nous	-
14	1114607		Wiring Cover		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
17	1113678		Shelf Track (right Side (2))		Appelez-nous	-
17	1113679		Shelf Track (left Side (2))		Appelez-nous	-
18	W11693756		Screw (8)   (Replaces: 487042)			Immediately	$ 14.06
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP489478		Screw   (Replaces: 489242)				$ 7.75
21	946356		Stud, Front (2)		Appelez-nous	-
22	1106982		Stud, Rear (2)		Appelez-nous	-
23	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
24	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
24	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
26	1118165		Shelf (2)		Appelez-nous	-
27	2149090		Trim, Shelf		Appelez-nous	-
