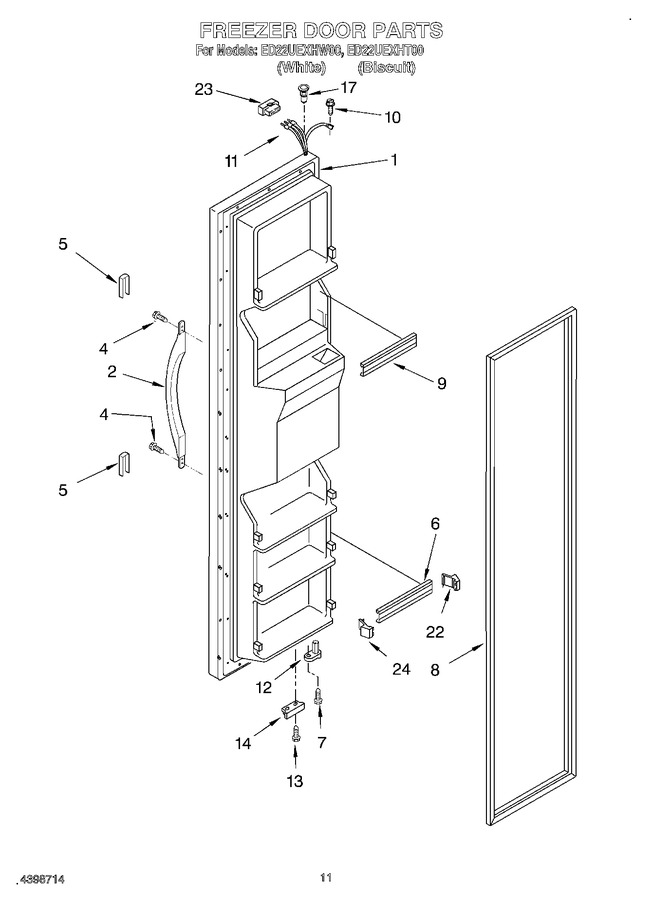

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2211676W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2211676T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
2	2186649T		Handle, Center (biscuit)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	2193353T		Endcap, Handle (biscuit)		Appelez-nous	-
5	WP2193353W		Endcap, Handle (white)   (Replaces: 2193353W)				$ 8.52
6	2198483		Trim, Door Shelf (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159072		Door Gasket, Magnetic (repair) (mist Beige)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2198271		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
17	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
22	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
23	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
24	2195917		Endcap (4)		Appelez-nous	-
