Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Blade, Fan				$ 52.00
3	2204242B		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
10	509812		Grommet		Appelez-nous	-
11	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
12	WP2162358		Cover   (Replaces: 4387731)				$ 95.29
13	4387535		Overload (service Includes Relay)   (Replaces: 4387767)				$ 191.05
16	2205764		Tube Suction				$ 89.18
17	WP4387764		Capacitor (service Compressor Only)   (Replaces: 4387764)				$ 185.89
18	2204412		Start-device, Combination (start Relay And Overload) For Production Compressor Only		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 8.18
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
23	2161324		Clamp		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2176336)			Immediately	$ 221.30
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2149293		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	W10309990		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2183453)			Immediately	$ 632.81
28	876765		Tube Kit			Immediately	$ 90.65
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
31	2188353		Unit, Harness		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 123.25
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
39	W11661108		Grommet (4)   (Replaces: 2183042)				$ 15.21
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2182057		Unit Cover, Bottom				$ 72.28
44	489396		Clip				$ 11.26
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
52	WP2205813		Strap   (Replaces: 2205813)				$ 8.11
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 137.25
63	WP4318044		Union   (Replaces: 2196152)				$ 10.87
63	978026		Valve, Access (5/16``)			Immediately	$ 134.49
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

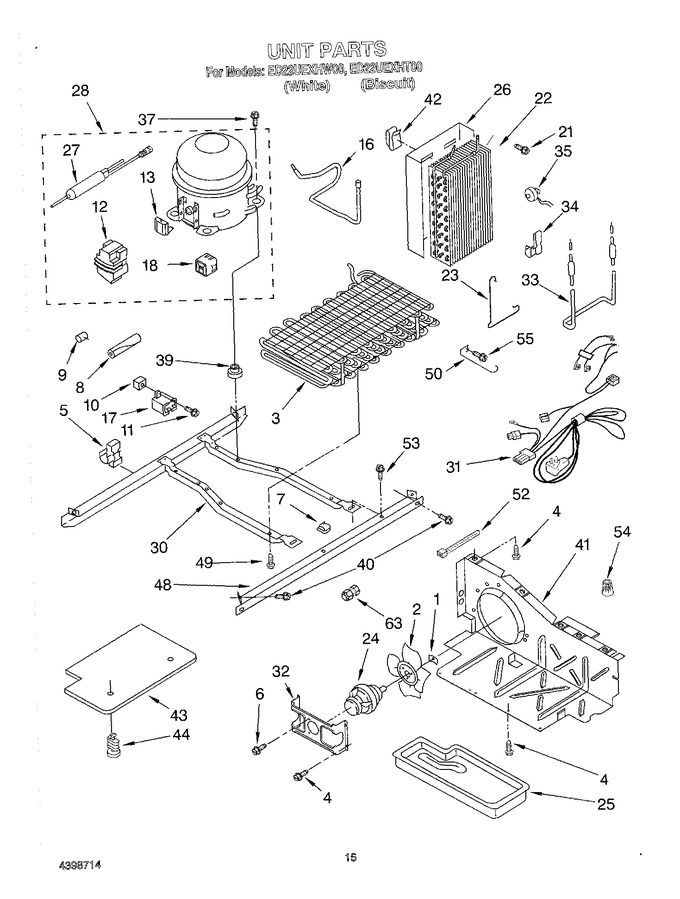

    View Diagram in Separate Window       Print Part List
