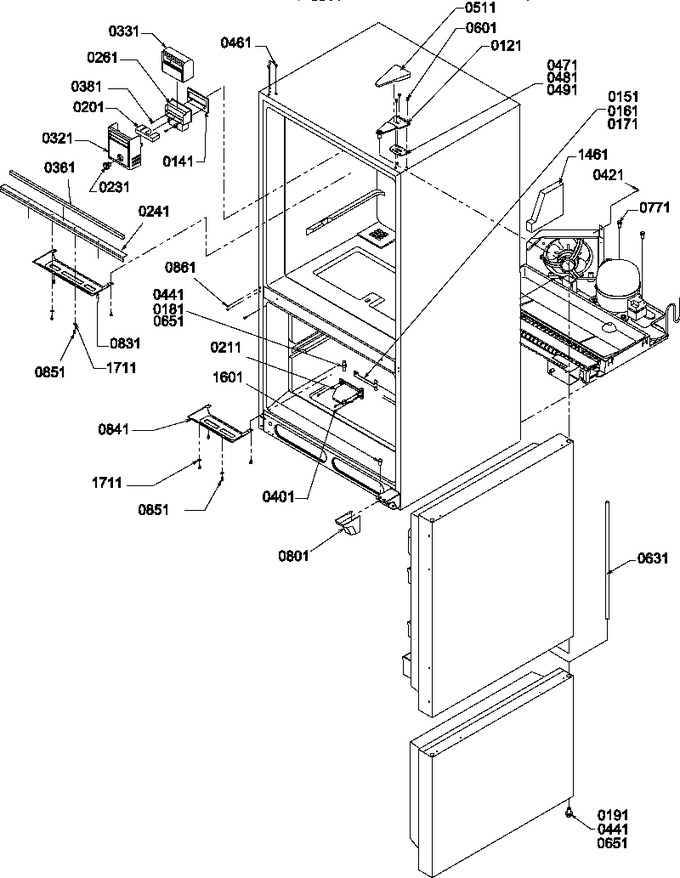

BX20S5E (BOM: P1196504W E) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
121	10185104	Assy, Top Hinge	Appelez-nous	-
141	B8345401	Gasket, Damper	Appelez-nous	-
151	10562204	Kit, Ctr Hinge Shim	Appelez-nous	-
161	10562205	Shim, Ctr. Hinge	Appelez-nous	-
171	10562206	Shim, Ctr. Hinge	Appelez-nous	-
181	WP67006744	Pin, Hinge (ctr) (Replaces: 10351001)			$ 8.68
191	67007018	Pin, Hinge (btm) (Replaces: 10200801)		Immediately	$ 8.62
201	C8902601	Insert, Control	Appelez-nous	-
231	D7795826	Knob, Control (wht)	Appelez-nous	-
241	D7288117	Shield, Light	Appelez-nous	-
261	D7547409	Control-damper	Appelez-nous	-
321	D7687522	Cover, Ref Control	Appelez-nous	-
331	D7687701	Insul. Damper	Appelez-nous	-
381	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
401	W11573362	Screw, T. F. (Replaces: M0226233)			$ 14.72
421	M0227217	Screw, Sm	Appelez-nous	-
441	WPM0274062	Shim, Non Metal (blk) (Replaces: M0274062)		Immediately	$ 24.43
461	WP12246608	Plug, Button (blk) (Replaces: M0310727)		Immediately	$ 8.15
471	10448501	Shim, Top Hinge	Appelez-nous	-
481	10448502	Shim, Top Hinge	Appelez-nous	-
491	10448503	Shim, Top Hinge	Appelez-nous	-
511	10444704	Cover, Hinge(black)	Appelez-nous	-
601	R9800670	Kit, Screw (Replaces: M0226331)			$ 10.58
631	10391302	Support, Pin	Appelez-nous	-
651	M0274063	Shim, Non Metal (blk)	Appelez-nous	-
771	M0221523	Screw, Shldr	Appelez-nous	-
801	10584801	Cover, Lower Hinge (ebony)	Appelez-nous	-
831	10493202	Cover, Ref. Light	Appelez-nous	-
841	10493302	Cover, Frz Light	Appelez-nous	-
851	M0219546	Screw	Appelez-nous	-
861	WP12246608	Plug, Top Hinge Button (blk) (Replaces: M0310731)		Immediately	$ 8.15
1461	10663002	Insul., L. Foot	Appelez-nous	-
1711	M0270538	Washer	Appelez-nous	-
