SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Light Covers


03 - Deli Assy


04 - Door Assemblies


05 - Door Handles & Accessories


06 - Evap & Fz Control Assemblies


07 - Ice Maker Assy & Parts


08 - Insulation & Roller Assy

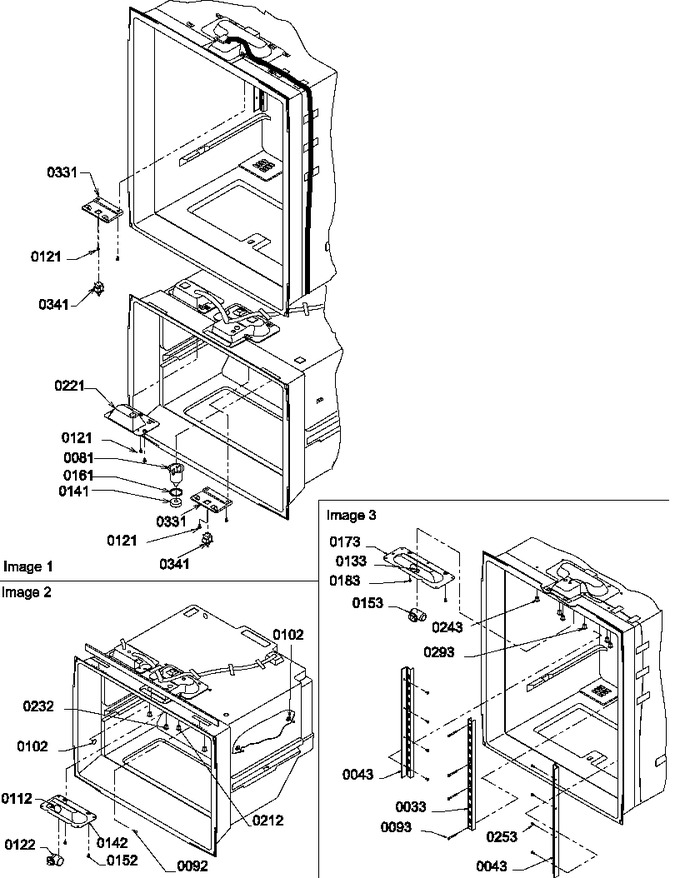

09 - Light Switches & Drain Funnel


10 - Machine Compartment Assy


11 - Shelving Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	D7599002		Ladder, Center		Appelez-nous	-
43	D7599105		Ladder, Side		Appelez-nous	-
81	W10815413		Funnel, Drain   (Replaces: D7753902)			Immediately	$ 51.50
92	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
93	M0231426		Screw		Appelez-nous	-
102	M0311301		Plug Button		Appelez-nous	-
112	B5733302		Clip, Ground		Appelez-nous	-
121	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
122	C8973404		Socket-light		Appelez-nous	-
133	B5733302		Clip, Ground		Appelez-nous	-
141	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
142	D7760102		Housing Frz Light		Appelez-nous	-
152	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
153	10796001		Socket, Dual Lamp		Appelez-nous	-
161	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
173	D7716409		Housing-ref Light		Appelez-nous	-
183	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
212	M0580007		Grommet, Screw		Appelez-nous	-
221	10649702		Housing, Frz. Cont.		Appelez-nous	-
232	M0581001		Grommet, Screw		Appelez-nous	-
243	M0580007		Grommet, Screw		Appelez-nous	-
253	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
293	M0581001		Grommet, Screw		Appelez-nous	-
331	D7297603		Cover, Light Sw		Appelez-nous	-
341	W11384469		Switch-nc Light   (Replaces: C3680307)			Immediately	$ 39.09

    View Diagram in Separate Window       Print Part List
