SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Light Covers


03 - Door Assy


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control Assy


06 - Ice Maker Assy & Parts


07 - Insulation & Rollers


08 - Light Switches & Drain Funnel


09 - Machine Compartment


10 - Shelving Assy

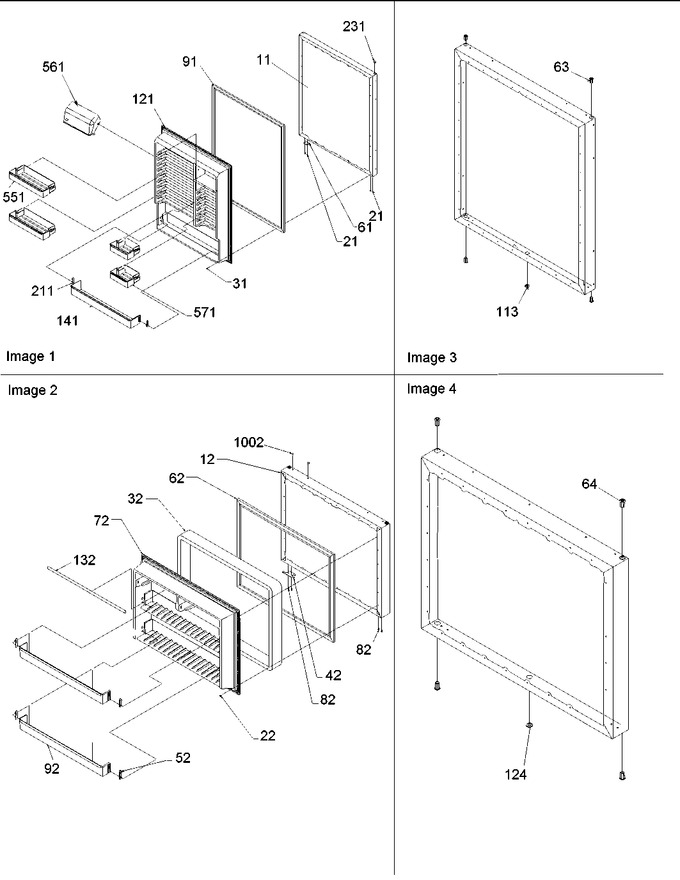

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12258307E		Assy,ref Dr Foam(black)		Appelez-nous	-
12	10537407E		Assy,fz Dr Foam(black)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 231.56
42	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.05
52	10202001		Clip, Retainer		Appelez-nous	-
61	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.05
62	WP12550101Q		Gasket,fz Dr(black)   (Replaces: 12550101)			Immediately	$ 204.44
63	10961002		Bushing, Door (blk)		Appelez-nous	-
64	10961002		Bushing, Door (blk)		Appelez-nous	-
72	12324801		Liner-fz Dr		Appelez-nous	-
82	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
91	12550108		Gasket, Ref Dr (blk)		Appelez-nous	-
92	10419015		Retainer, Ref Door		Appelez-nous	-
113	M0310336		Plug, Button (blk)		Appelez-nous	-
121	10462502		Liner, Refr. Door		Appelez-nous	-
124	M0310336		Plug, Button (blk)		Appelez-nous	-
132	10304111		Extrs, Shelf		Appelez-nous	-
141	10183121		Retainer, Ref Door		Appelez-nous	-
211	10202001		Clip, Retainer		Appelez-nous	-
231	10686404		Plug, Button(black)		Appelez-nous	-
551	10416911		Shelf, Ref Door		Appelez-nous	-
561	10423414		Door,dairy		Appelez-nous	-
571	10502912		Bucket, Ref Door		Appelez-nous	-
1002	WP12246608		Plug, Handle Hole (blk)   (Replaces: 12246603)			Immediately	$ 7.76

    View Diagram in Separate Window       Print Part List
