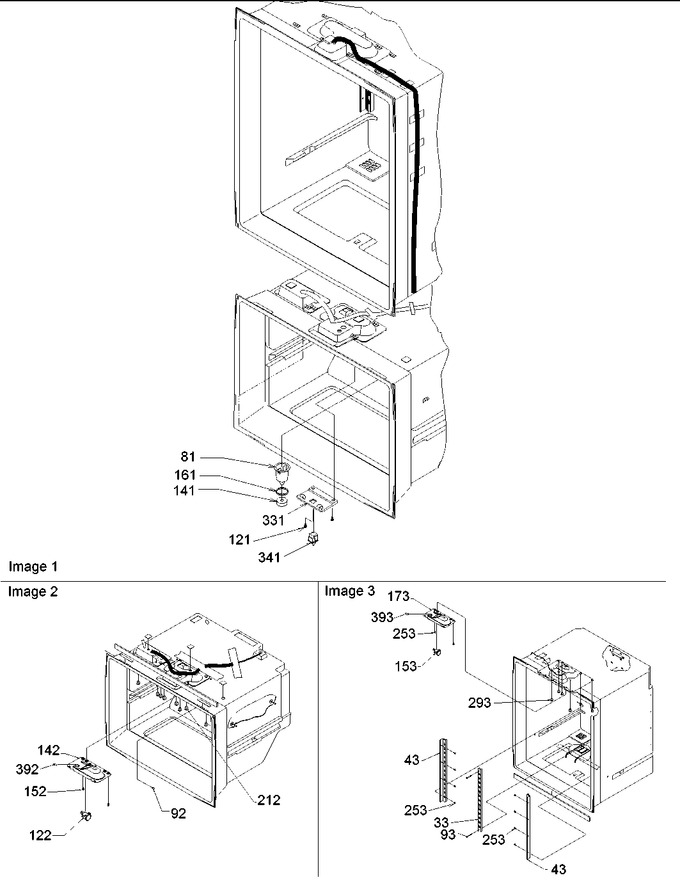

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	12435801		Ladder, Center		Appelez-nous	-
43	12435701		Ladder, Side (l/r)		Appelez-nous	-
81	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 51.50
92	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
93	M0231426		Screw		Appelez-nous	-
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
122	D7714408		Socket, Light				$ 68.10
141	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
142	12427502		Housing, Light		Appelez-nous	-
152	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
153	D7714408		Socket, Light				$ 68.10
161	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
173	12427502		Housing, Light		Appelez-nous	-
212	M0581001		Grommet, Screw		Appelez-nous	-
253	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
293	M0581001		Grommet, Screw		Appelez-nous	-
331	D7297604		Cover, Light Sw		Appelez-nous	-
341	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 39.09
392	B5733302		Clip, Ground		Appelez-nous	-
393	B5733302		Clip, Ground		Appelez-nous	-
