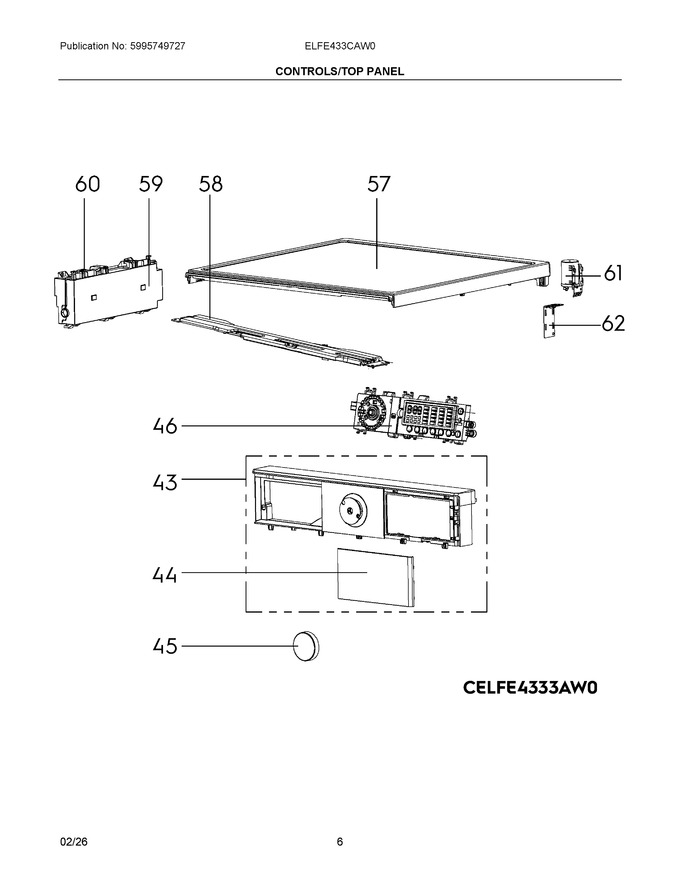

04 - Controls/top Panel
05 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | 4056040365 | Control Panel Assembly |
|
- | |||||
| 44 | 4056040373 | Overlay, Control Panel |
|
- | |||||
| 45 | 4056040381 | Knob Assembly |
|
- | |||||
| 46 | 4056043757 | User Interface Board |
|
- | |||||
| 57 | 4056040563 | Top Panel Assembly |
|
- | |||||
| 58 | 4056040530 | Bracket, Top Panel |
|
- | |||||
| 59 | 4056040548 | Cover, Main Board |
|
- | |||||
| 60 | 4056040555 | Main Board Assembly |
|
Immediately | $ 137.83 | ||||
| 61 | 4056040571 | Filter Assembly, Electric |
|
Immediately | $ 21.16 | ||||
| 62 | 4056040589 | Support, Top Panel |
|
- |
