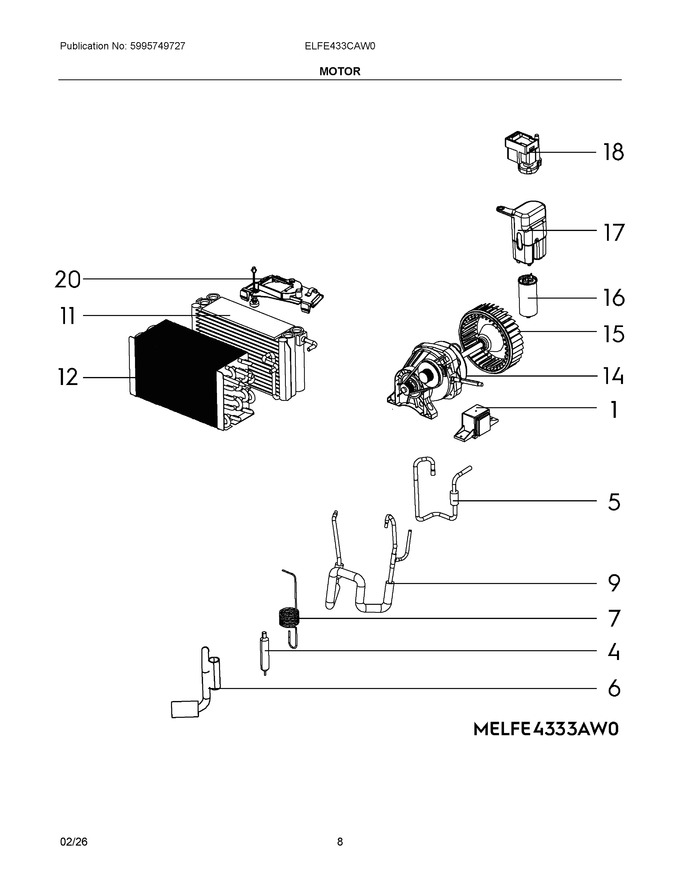

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4055706115 | Pressure Switch, Choke |
|
- | |||||
| 4 | 4056039961 | Dryer Filter |
|
- | |||||
| 5 | 4056039953 | Pipe Joint Assembly, (i) |
|
- | |||||
| 6 | 4056039987 | Pipe Joint Assembly, (f) |
|
- | |||||
| 7 | 4056039979 | Capillary |
|
- | |||||
| 9 | 4056039995 | Pipe Joint |
|
- | |||||
| 11 | 4056040019 | Condenser, Air Cool |
|
- | |||||
| 12 | 4056040027 | Evaporator |
|
- | |||||
| 14 | 4056040043 | Motor, Dryer |
|
- | |||||
| 15 | 4056040050 | Fan Assembly |
|
- | |||||
| 16 | 4056040068 | Capacitor |
|
- | |||||
| 17 | 4056040076 | Cover, Capacitor |
|
- | |||||
| 18 | 4056040092 | Water Pump Assembly |
|
- | |||||
| 20 | 4056040100 | Water Level Sensor |
|
- | |||||
| NI | 4056051859 | Heat Pump Water |
|
- |
