New Model Search:

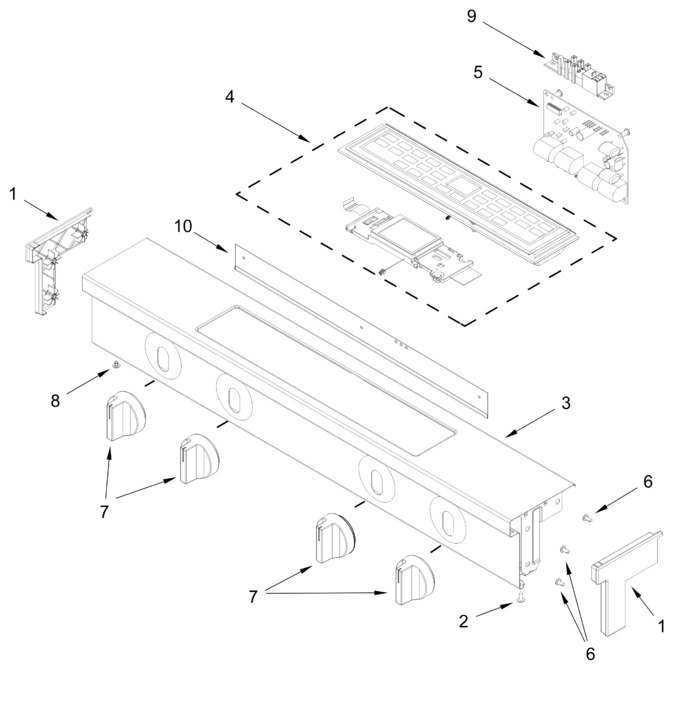

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11770979 | Console, Endcap (black, Left) (Replaces: W11420182) |
|
$ 67.37 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | W11832055 | Panel, Control (black) (Replaces: W11698958) |
|
- | |||||
| 4 | W11817168 | Control, User Interface (Replaces: W11785666) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 7 | W11730315 | Knob (black) (Replaces: W11632042) |
|
- | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 9 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 105.71 | ||||
| 10 | W11817164 | Console Filler (Replaces: W11784731) |
|
- | |||||
| W11770980 | Console, Endcap (black, Right) (Replaces: W11420180) |
|
- |
