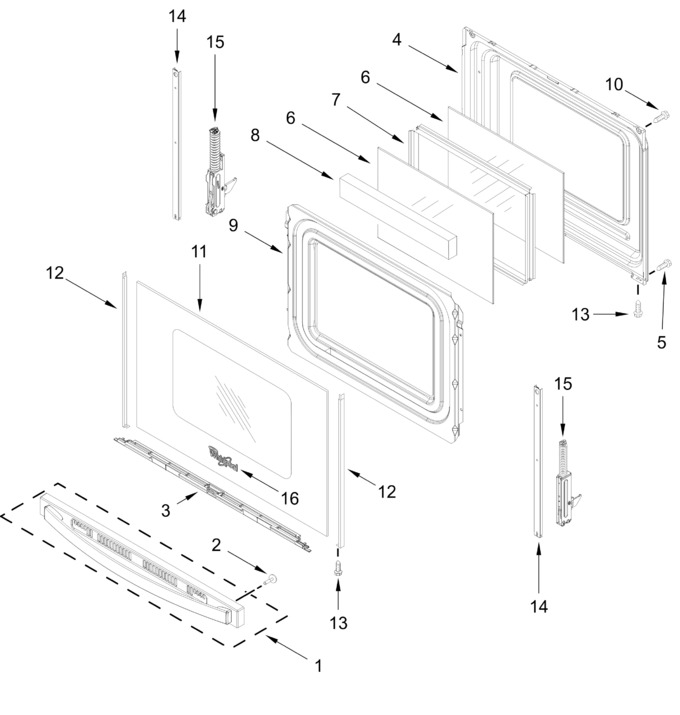

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11707071 | Handle And Vent Assembly (black) (Replaces: W11353052) |
|
$ 155.19 | |||||
| 2 | W10896982 | Screw (Replaces: W10465158) |
|
$ 7.56 | |||||
| 3 | W11569689 | Trim, Bottom Door (black) (Replaces: W11444043) |
|
Immediately | $ 54.07 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11809823 | Retainer, Insulation (Replaces: W11788182) |
|
- | |||||
| 10 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 11 | W11741357 | Glass, Outer Door (black) (Replaces: W11729636) |
|
$ 163.40 | |||||
| 12 | W10761018 | Trim, Door Side (black, Left) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10440013 | Hinge, Door (active, Full Glass) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| W10761014 | Trim, Door Side (black, Right) (Replaces: W10746435) |
|
Immediately | $ 65.66 |
