SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Internal Oven Parts


Lower Door Parts


Optional Parts (not Included)


Upper Door Parts

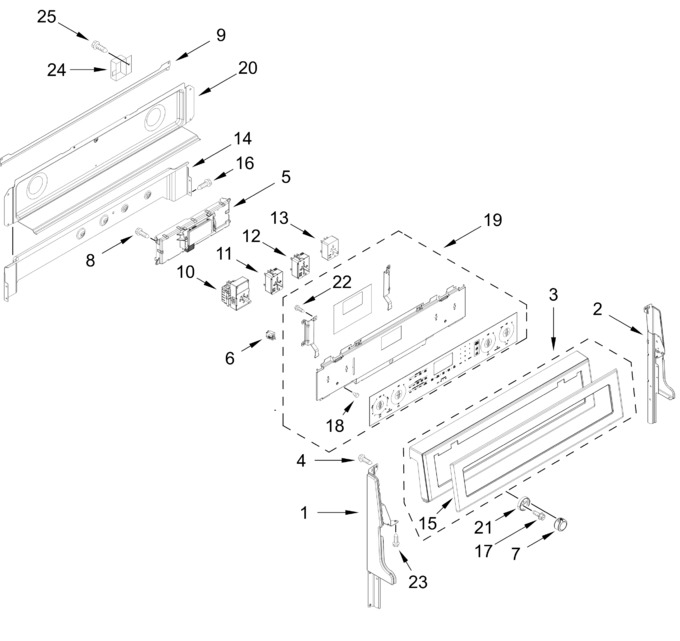

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Left Backguard (black)				$ 92.84
2	W10319111		Support, Right Backguard (black)				$ 43.80
3	W11084228		Console (black Stainless)   (Replaces: W11024860)				$ 561.98
4	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
5	W11594169		Control, Maxwell Electronic   (Replaces: W11515095)			Immediately	$ 490.84
6	7407P13660		Light, Indicator		Appelez-nous	-
7	W11156487		Knob (stainless)   (Replaces: W10823529)			Immediately	$ 61.25
8	7101P43460		Screw		Appelez-nous	-
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
10	W11129442		Switch, Infinite   (Replaces: W10437097)			Immediately	$ 100.57
11	WPW10295048		Switch, Infinite   (Replaces: W10295048)			Immediately	$ 159.95
12	WPW10312185		Switch, Infinite   (Replaces: W10312185)			Immediately	$ 147.15
13	7403P37360		Switch, Infinite				$ 0.03
14	W10278697		Shield, Vent			Immediately	$ 183.33
15	ARICD174FDC9EF831BEB043ABA54B1EDED8		Skin, Control Panel (not Serviced)		Appelez-nous	-
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
17	W10674068		Screw				$ 24.39
18	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
19	W11809001		User Interface Assembly (black)   (Replaces: W11780506)		Appelez-nous	-
20	W10776098		Cover, Backguard				$ 135.81
21	W11368920		Bezel, Knob   (Replaces: W10645811)			Immediately	$ 60.55
22	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
23	7101P63460		Screw		Appelez-nous	-
24	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
25	7101P33860		Screw		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
