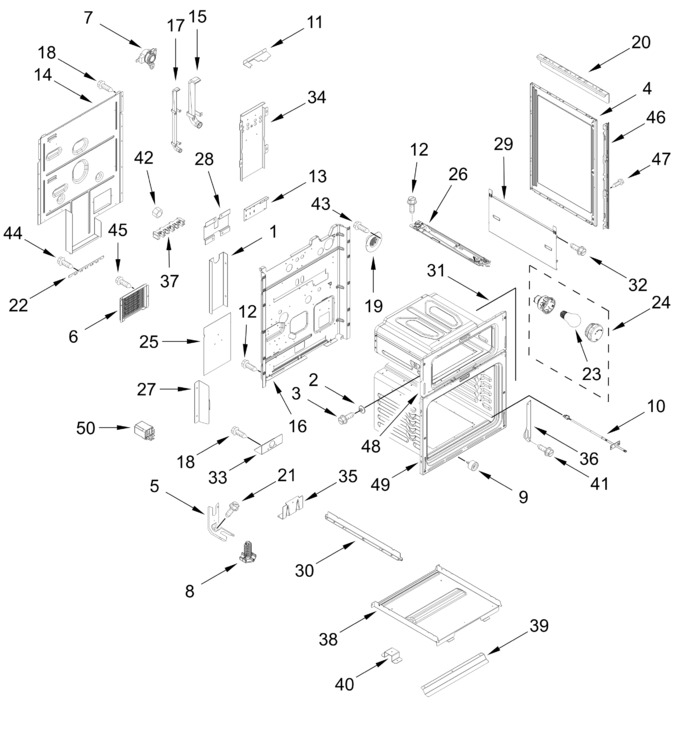

SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Internal Oven Parts


Lower Door Parts


Optional Parts (not Included)


Upper Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	W11594028		Spacer, Side Panel   (Replaces: W11479123)				$ 15.02
3	7101P64260		Screw		Appelez-nous	-
4	W11594130		Panel, Side (black)   (Replaces: W11477310)				$ 194.33
5	3801F65651		Bracket, Anti-tip		Appelez-nous	-
6	W10312612		Cover, Access (terminal Block)				$ 129.42
7	7403P89960		Switch, High Limit		Appelez-nous	-
8	W11768652		Foot, Leveler   (Replaces: W11756326)		Appelez-nous	-
9	W10105790		Bumper (includes Screw)				$ 7.41
10	7430P04460		Sensor, Oven		Appelez-nous	-
11	W10268559		Cover, Lower Wire		Appelez-nous	-
12	7101P42660		Screw		Appelez-nous	-
13	W10332449		Shield, Cord				$ 73.40
14	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 194.70
15	W10337391		Tube, Vent (upper)				$ 72.26
16	W10668730		Back, Main			Immediately	$ 228.74
17	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 114.85
18	7101P43460		Screw		Appelez-nous	-
19	W10322408		Adapter, Vent Tube				$ 129.03
20	W10319087		Bracket, U Channel				$ 83.10
21	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
22	8036P01260		Shield, Power Cord		Appelez-nous	-
23	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
24	W11594027		Light Assembly   (Replaces: W11544370)			Immediately	$ 87.01
25	W10311987		Shield, Cord (right)		Appelez-nous	-
26	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 324.44
27	W10268560		Cover, Wire Lower				$ 73.05
28	7003P10460		Insulator, Heat Shield		Appelez-nous	-
29	W10538516		Shield, Side Insulation				$ 142.52
30	W10357697		Bracket, Side Panel				$ 24.34
31	W11594029		Gasket, Oven Door   (Replaces: W11491754)				$ 105.99
32	W10443110		Screw			Immediately	$ 15.25
33	W10190166		Bracket, Power Supply				$ 9.70
34	W10261388		Bracket, Terminal				$ 73.34
35	W10863342		Support, Lower Oven		Appelez-nous	-
36	W10410463		Cover, Hinge (left)				$ 98.93
37	W11736123		Block, Terminal (without Ground Strap)   (Replaces: W11750818)				$ 16.13
38	W10548601		Pan, Element				$ 154.98
39	W10253470		Bracket, Retaining				$ 81.14
40	W10260545		Clip, Retaining				$ 13.82
41	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
42	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 8.19
43	W10850807		Screw   (Replaces: W10720084)				$ 7.77
44	WP488488		Screw   (Replaces: 489290)				$ 8.52
45	7101P33860		Screw		Appelez-nous	-
46	W11625729		Bracket, Rubber Barrier				$ 94.06
47	7101P63360		Screw (black)		Appelez-nous	-
48	W11515375		Front, Main (upper)		Appelez-nous	-
49	W11515372		Front, Main (lower)		Appelez-nous	-
50	W10326400		Relay (12v)				$ 70.90
	WPW10204079		Insulation, Middle   (Replaces: W10204079)				$ 118.72
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11685361		Insulation, Main Front Strip   (Replaces: W10204085)				$ 35.54
	W11594140		Gasket, Oven Door   (Replaces: W11491753)				$ 106.02
	ARI38D35BAE78D1A940514098F5A17CA16C		(lower)		Appelez-nous	-
	W11688548		Insulation, Hidden Bake Pouch   (Replaces: W11463064)		Appelez-nous	-
	W11594030		Insulation, Wrapper   (Replaces: W11462751)		Appelez-nous	-
	ARIBDE34E4B7C52536A232C9D8494429F6D		(upper)		Appelez-nous	-
	W10410461		Cover, Hinge (right)				$ 94.86
	WPW10322111		Insulation, Back   (Replaces: W10322111)				$ 139.60
	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 111.48
