Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

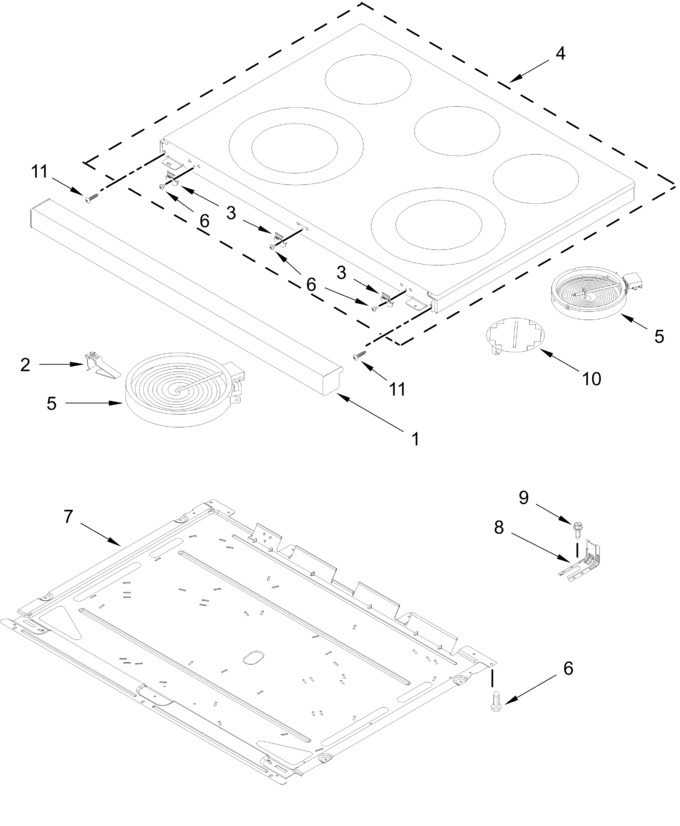

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11729921 | Bullnose (white) (Replaces: W11624925) |
|
$ 397.37 | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11730413 | Cooktop (black, Includes, Cooktop Bracket) (Replaces: W11633197) |
|
- | |||||
| 5 | W11517959 | Element, (dual 3000w) (Replaces: W11282542) |
|
Immediately | $ 134.44 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 10 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 11 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11784064 | Main Harness (Replaces: W11765579) |
|
- | ||||||
| W11737120 | Harness, Cooktop (Replaces: W11706379) |
|
$ 151.32 | ||||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear, Right Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11171119 | Element (1200w) (Replaces: W10248261) |
|
Immediately | $ 182.23 | |||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- |
