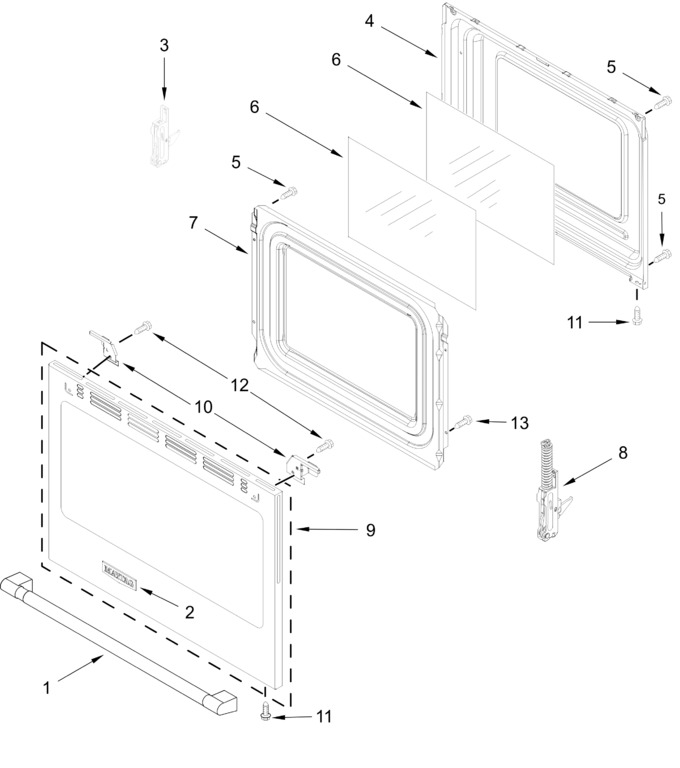

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11648982 | Door, Handle (stainless) (Replaces: W11495825) |
|
$ 219.85 | |||||
| 2 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 42.40 | ||||
| 3 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 171.68 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761501) |
|
$ 188.29 | |||||
| 8 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 72.76 | ||||
| 9 | W11750798 | Outer Door Glass Assembly (white, Includes Badge) (Replaces: W11631956) |
|
- | |||||
| 10 | W11726809 | Bracket, Handle Mount (left) (Replaces: W11417442) |
|
$ 29.69 | |||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| W11726808 | Bracket, Handle Mount (right) (Replaces: W11157607) |
|
- |
