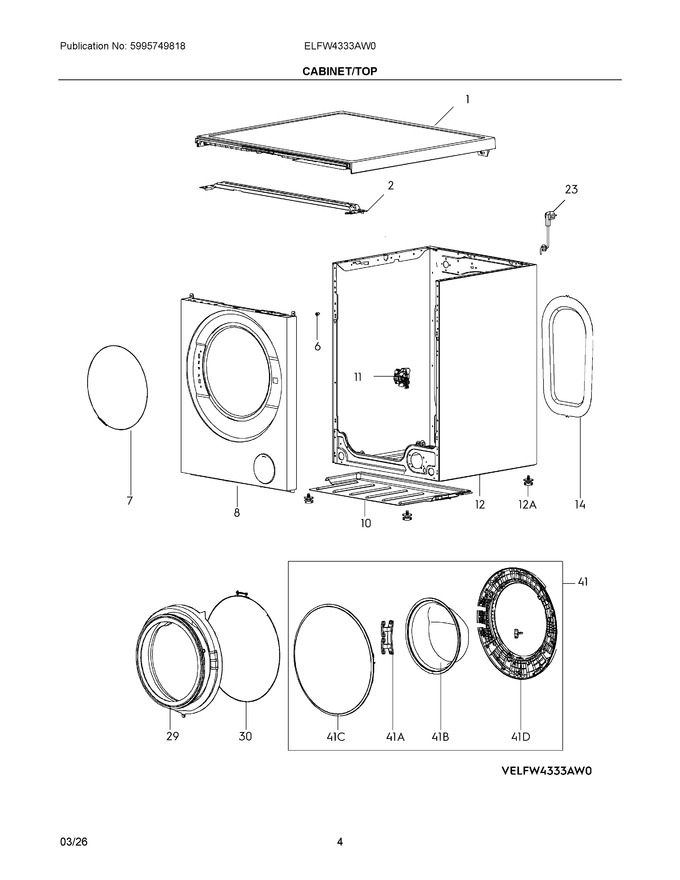

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056040910		Top Cover Assembly		Appelez-nous	-
2	4056040928		Bracket, Top Panel		Appelez-nous	-
6	4056040951		Pin, Front Panel		Appelez-nous	-
7	4055706677		Spring Clip, Door Gasket		Appelez-nous	-
8	4056040969		Front Panel, Assembly		Appelez-nous	-
10	4056040985		Base, Bottom Board		Appelez-nous	-
11	4056040993		Latch, Door Lock		Appelez-nous	-
12	4056041017		Cabinet Assembly		Appelez-nous	-
14	4055772422		Cover, Rear		Appelez-nous	-
23	4056041090		Power Cord		Appelez-nous	-
29	4056041140		Gasket, Door		Appelez-nous	-
30	4055656492		Clamp, Door Gasket		Appelez-nous	-
41	4056041215		Door Assembly		Appelez-nous	-
12A	4056041009		Adjustable Foot, Cabinet		Appelez-nous	-
41A	4056041231		Hinge		Appelez-nous	-
41B	4056041249		Glass, Door		Appelez-nous	-
41C	4056041256		Plunger, Door		Appelez-nous	-
41D	4056041264		Inner Frame, Door		Appelez-nous	-
NI	4055698007		Screw, Shipping				$ 3.78
NI	4056041025		Screw		Appelez-nous	-
