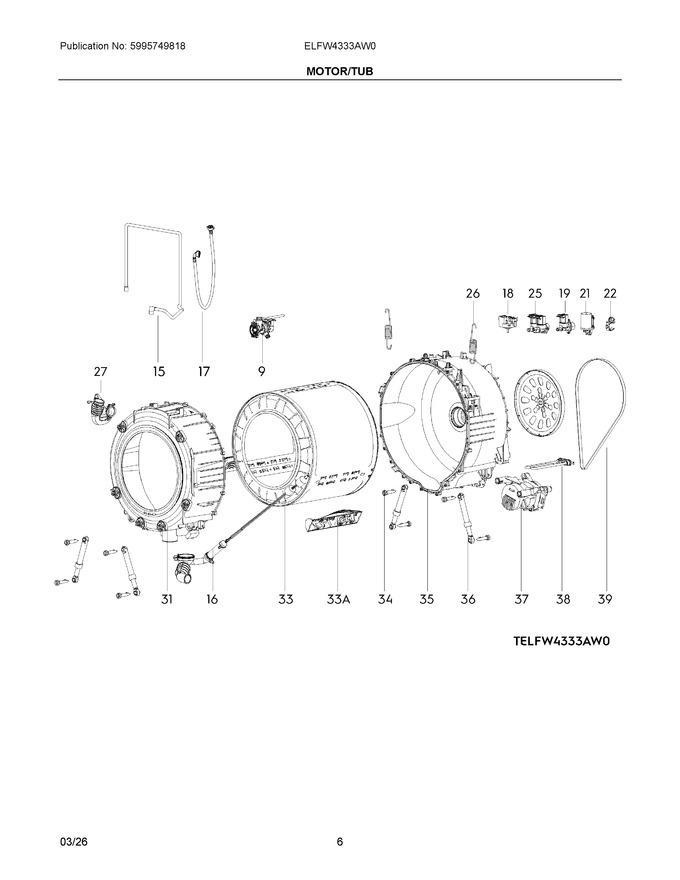

04 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4055697504		Wheel, Belt		Appelez-nous	-
9	4056040977		Water Pump		Appelez-nous	-
15	4056041041		Drain Hose, Assembly				$ 13.48
16	4055699195		Drain Hose Assembly, Tub		Appelez-nous	-
17	4056041058		Water Inlet Hose, Assembly		Appelez-nous	-
18	4055699690		Sensor, Water Level		Appelez-nous	-
19	4056041074		Valve, Inlet, Hot Water		Appelez-nous	-
21	4056040571		Filter Assembly, Electric			Immediately	$ 21.16
22	4056041082		Support, Drain Hose		Appelez-nous	-
25	5304530082		Valve, Cold			Immediately	$ 99.05
26	4055772356		Spring, Suspension		Appelez-nous	-
27	4056041124		Hose, Water Inlet		Appelez-nous	-
31	4056041157		Tub, Assembly, Front		Appelez-nous	-
33	4056041165		Drum		Appelez-nous	-
34	4055706602		Pin, Damper		Appelez-nous	-
35	4056041181		Rear Tub, Assembly		Appelez-nous	-
36	4055706560		Damper		Appelez-nous	-
37	4056041199		Motor		Appelez-nous	-
38	4056041207		Heater		Appelez-nous	-
39	4055705984		Belt, Drum		Appelez-nous	-
33A	4056041173		Vane, Drum		Appelez-nous	-
NI	4056041108		Clamp, Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
