SELECT A DIAGRAM
New Model Search:

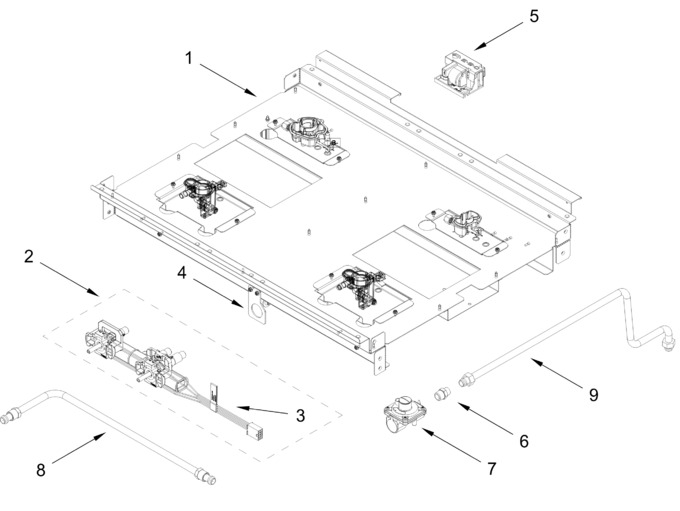

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 2 | W11788692 | Valve Manifold Assembly (Replaces: W11730895) |
|
- | |||||
| 3 | W11788695 | Switch, Lighted Harness (Replaces: W11749906) |
|
$ 392.52 | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 7 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 238.90 | ||||
| 8 | W11788696 | Tube, Manifold Supply (Replaces: W11730894) |
|
- | |||||
| 9 | W11320154 | Tube, Pressure Regulator (Replaces: W11106963) |
|
$ 185.91 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11797098 | Lp Surface Conversion Kit (Replaces: W11779130) |
|
- | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| W11797099 | Lp Oven Conversion Kit (Replaces: W11779797) |
|
- | ||||||
| W11788694 | Valve Manifold Assembly (Replaces: W11730899) |
|
- | ||||||
| W11788697 | Tube, Manifold Supply (Replaces: W11730898) |
|
- | ||||||
| ARI5AD74B3C8D449725567FBC40A122921E | (right Front, Right Rear) |
|
- | ||||||
| W11200328 | Harness, Cooktop |
|
$ 199.91 | ||||||
| W11200301 | Harness, Main (30 In) |
|
- | ||||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| W11790531 | Harness, Communication (Replaces: W11766035) |
|
$ 139.03 | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W10624584 | Cord, Power |
|
$ 189.57 | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | |||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 20.21 |
