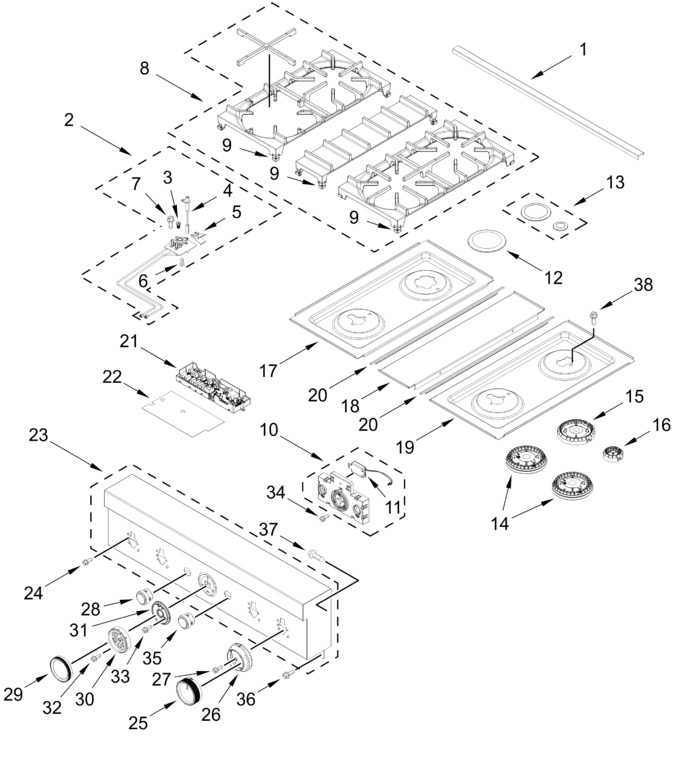

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11156414		Trim, Island				$ 260.38
2	W11805915		Orifice Holder Assembly   (Replaces: W11775868)		Appelez-nous	-
3	ARIE067872F6F52DD2FD69D26241530A01D		Orifice (not Serviced, Must Order Orifice Holder Assembly)		Appelez-nous	-
4	W11788750		Igniter   (Replaces: W11759723)			Immediately	$ 35.81
5	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
6	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
7	3196172		Screw			Immediately	$ 13.47
8	W11789239		Grate Burner Kit		Appelez-nous	-
9	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
10	W11790604		User Interface   (Replaces: W11777683)		Appelez-nous	-
11	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
12	W11576413		Cap, Stack Burner (black)   (Replaces: W11346163)				$ 89.25
13	W11788771		Cap Kit, Burner (black, Set Of 2)   (Replaces: W11750250)		Appelez-nous	-
14	W11436986		Flame Spreader, Stack   (Replaces: W11348511)			Immediately	$ 71.73
15	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
16	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72
17	W11788773		Panel, Left Cooktop (black)   (Replaces: W11758655)		Appelez-nous	-
18	W11121361		Filler, Cooktop (black)				$ 465.65
19	W11788779		Panel, Right Cooktop (black)   (Replaces: W11758656)		Appelez-nous	-
20	W10271524		Trim, T-strip (black)				$ 212.34
21	W11790581		Manager, Appliance (powermax)   (Replaces: W11767303)				$ 409.76
22	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
23	W11789632		Console Panel   (Replaces: W11774889)		Appelez-nous	-
24	W11674763		Screw   (Replaces: W10919387)				$ 14.76
25	W11788781		Knob, Dual (stainless)   (Replaces: W11732024)				$ 87.79
26	W11819790		Bezel Assembly, Gas Burner (stainless)   (Replaces: W11801796)		Appelez-nous	-
27	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
28	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
29	W11788784		Knob, Oven Temperature (stainless)   (Replaces: W11740403)				$ 61.29
30	W11789785		Knob, Oven Mode (stainless)   (Replaces: W11738550)		Appelez-nous	-
31	W11788782		Bezel Assembly, Oven (stainless)   (Replaces: W11738551)		Appelez-nous	-
32	WP486754		Screw   (Replaces: 246119)				$ 8.01
33	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
34	W10162096		Screw				$ 21.90
35	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
36	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
37	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
38	W11788768		Screw   (Replaces: W11719156)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11805916		Orifice Holder Assembly   (Replaces: W11775869)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	W11788780		Knob, Single (stainless)   (Replaces: W11731284)				$ 52.49
	W11788752		Igniter   (Replaces: W11759742)		Appelez-nous	-
	W11788751		Igniter   (Replaces: W11759741)		Appelez-nous	-
	W11788749		Orifice Holder Assembly   (Replaces: W11744490)		Appelez-nous	-
	W11788747		Orifice Holder Assembly   (Replaces: W11744491)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
