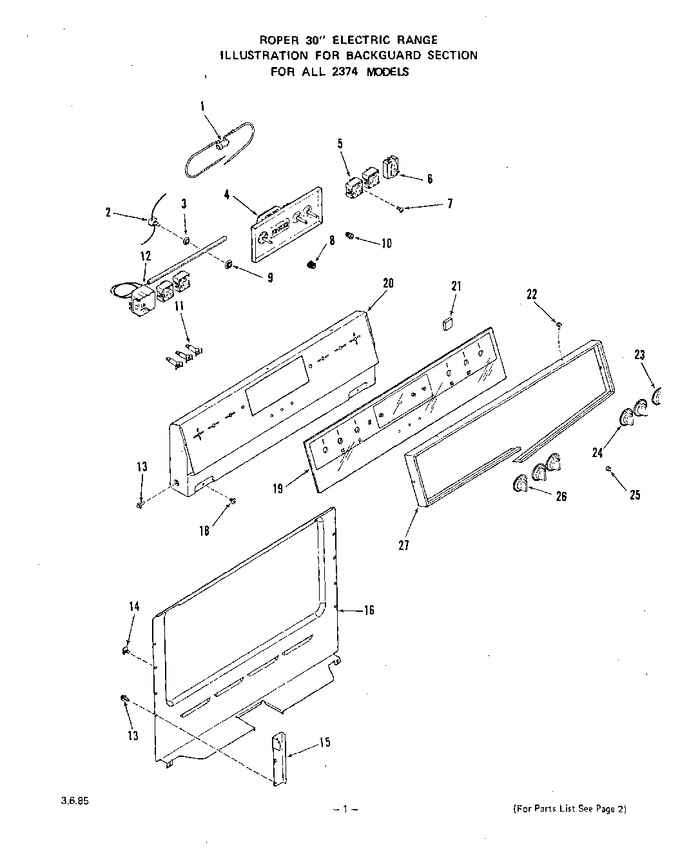

02 - Backguard


03 - Main Top


04 - Optional Equipment


05 - Power Lock


06 - Body


07 - Oven Door


08 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327623		Wire Lead W/resistor		Appelez-nous	-
2	307573		Push Switch - Oven Light		Appelez-nous	-
3	236129		Pal Nut 3/8-27 (2 Req)		Appelez-nous	-
4	322307		Clock W/1 Hr. Timer		Appelez-nous	-
5	5500-200		4 Req. All 23740a Models   (Replaces: 320944)			Immediately	$ 60.94
5	324608		Lt.frt. & Rt. Rear Except 23740a		Appelez-nous	-
5	324609		Rt.frt. & Lt. Rear Except 23740a		Appelez-nous	-
6	327163		Selector Switch		Appelez-nous	-
7	78565		Screw 8-32x3/16``		Appelez-nous	-
8	294810		Knob-clock (1 Req)		Appelez-nous	-
9	109883		Nut-trim 3/8-27		Appelez-nous	-
10	109225		Knob-clock (start & Stop Time) (2)		Appelez-nous	-
11	323228		Light-indicator (3 Req)		Appelez-nous	-
12	324686		Thermostat		Appelez-nous	-
13	327320		Screw 10-16x7/16``		Appelez-nous	-
14	70588		Clip-trim		Appelez-nous	-
15	327107		Left		Appelez-nous	-
15	327106		Right		Appelez-nous	-
16	326122		Wire Cover-backguard		Appelez-nous	-
18	326974		Screw 10abx1/2``		Appelez-nous	-
19	327183		Top Lamp Glass		Appelez-nous	-
20	326710		Golden Wheat		Appelez-nous	-
20	326711		Almond		Appelez-nous	-
20	326709		White		Appelez-nous	-
21	322302		Spacer-top Lamp Glass (2 Req)		Appelez-nous	-
22	327621		Screw 6-20x3/8``		Appelez-nous	-
23	327185		Knob-selector		Appelez-nous	-
24	326944		Knob-infinite Control (4 Req)		Appelez-nous	-
25	325677		Lens-indicator Light (3 Req)		Appelez-nous	-
26	326957		Knob-thermostat		Appelez-nous	-
27	308007		Bezel-backguard		Appelez-nous	-
