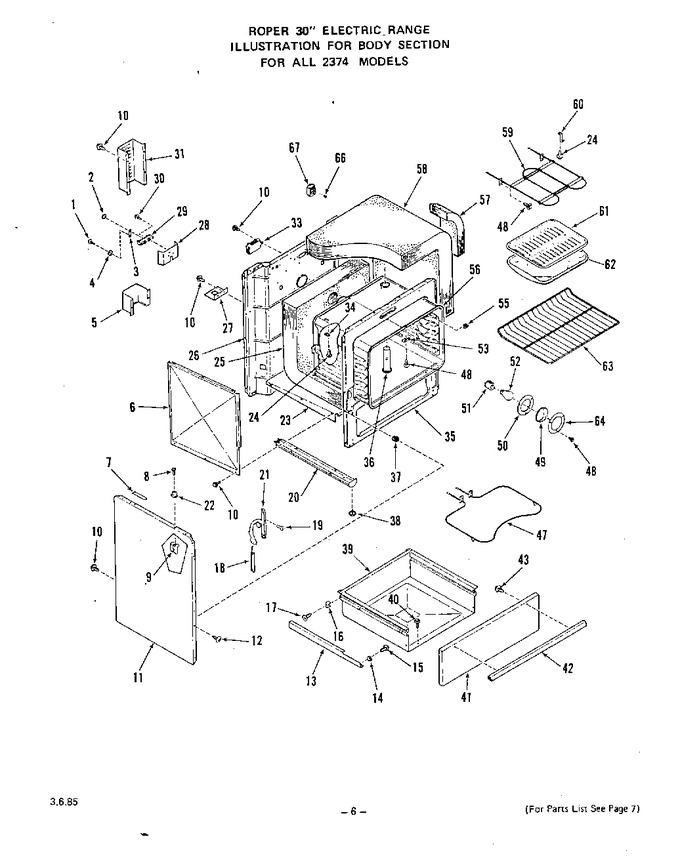

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		Screw 10-32x7/16``		Appelez-nous	-
2	97816		Hex Nut 10-32		Appelez-nous	-
3	327255		Ground Strap		Appelez-nous	-
4	299425		Washer		Appelez-nous	-
5	327258		Wire Shield-lower		Appelez-nous	-
6	313284		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
7	326914		Spacer-main Top (lt. Or Rt.)		Appelez-nous	-
8	327256		Screw 6-32x7/8``		Appelez-nous	-
9	326516		Bracket-body Side (lt. Or Rt.)		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	326059		Almond		Appelez-nous	-
11	326058		Golden Wheat		Appelez-nous	-
11	326055		White		Appelez-nous	-
12	314124		Screw 8abx5/8``		Appelez-nous	-
13	311441		Support-storage Drawer (lt. Or Rt.)		Appelez-nous	-
14	281914		Slide Block-front (lt. Or Rt.)		Appelez-nous	-
15	295849		Screw 10-32x17/32``		Appelez-nous	-
16	281913		Slide Block-rear (lt. Or Rt.)		Appelez-nous	-
17	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.84
18	326965		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
19	112013		Screw 10-32 X 5/8``		Appelez-nous	-
20	326050		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
21	326012		Right		Appelez-nous	-
21	326013		Left		Appelez-nous	-
22	326513		Strike-main Top (lt. Or Rt.)		Appelez-nous	-
23	313281		Insulation Retainer-bottom		Appelez-nous	-
24	327320		Screw 10-16x17/32``		Appelez-nous	-
25	308861		Insulation-oven Bottom & Back (1 Piece)		Appelez-nous	-
26	325879		Main Back		Appelez-nous	-
27	327259		Range Service Mounting Plate		Appelez-nous	-
28	327242		Insulator-service Cord		Appelez-nous	-
29	290105		Junction Block		Appelez-nous	-
30	313190		Screw 10-32x1``		Appelez-nous	-
31	327235		Shield-upper Wire		Appelez-nous	-
33	239802		Relay-oven		Appelez-nous	-
34	237762		Plate-thermostat Bulb Cover		Appelez-nous	-
35	326030		All 23740a & 23741a Models		Appelez-nous	-
35	331587		All 23742a Models		Appelez-nous	-
36	308822		Tube-vent		Appelez-nous	-
37	330031		Spacer-expansion Nut (6 Req)   (Replaces: 312605)			Immediately	$ 19.92
38	326052		Leg Leveler (4 Req)		Appelez-nous	-
39	296150		Drawer-storage		Appelez-nous	-
40	327320		Screw 10-16x7/16``		Appelez-nous	-
41	326076		Golden Wheat		Appelez-nous	-
41	326073		White		Appelez-nous	-
41	326077		Almond		Appelez-nous	-
42	292240		Handle		Appelez-nous	-
43	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
47	WG02F05414		Element-bake   (Replaces: 325883)			Immediately	$ 124.43
48	327320		Screw 10-16x7/16``		Appelez-nous	-
49	114989		Lens-oven Lamp		Appelez-nous	-
50	229371		Gasket-lens		Appelez-nous	-
51	87883		Holder-oven Lamp		Appelez-nous	-
52	DA96-01243C		Bulb-oven Lamp   (Replaces: 111257)				$ 160.00
53	304835		Cover		Appelez-nous	-
55	238052		Retainer-thermostat Bulb		Appelez-nous	-
56	325766		All 23740a & 23741a Models		Appelez-nous	-
56	331578		All 23742a Models		Appelez-nous	-
57	316951		Insulation (rt. Or Lt.)		Appelez-nous	-
58	308860		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
59	326360		Element-broil		Appelez-nous	-
60	324808		Support-broil Element		Appelez-nous	-
61	326297		Grid-broiler Pan		Appelez-nous	-
62	331592		All 23742a Models		Appelez-nous	-
62	326300		All 23740a & 23741a Models		Appelez-nous	-
63	326069		Rack-oven (2 Req)		Appelez-nous	-
64	229372		Retainer-oven Light Lens		Appelez-nous	-
66	78565		Screw 8-31x3/16``		Appelez-nous	-
67	293428		Control-fixed Infinite		Appelez-nous	-
