Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner, And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

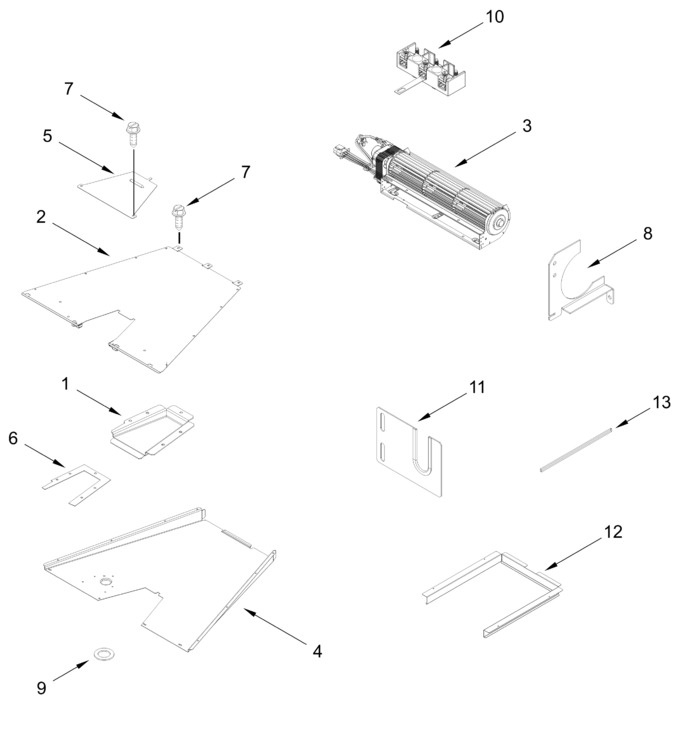

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10818234		Slope, Exhaust Vent (30 In)		Appelez-nous	-
2	W11320402		Vent, Cooling Top (30 In)   (Replaces: W11105223)				$ 139.98
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 241.54
4	W11320403		Vent, Cooling Bottom (30 In)   (Replaces: W11105222)		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	W10270397		Seal, Vent Slope (30 In)		Appelez-nous	-
7	7101P42660		Screw		Appelez-nous	-
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W10270396		Seal, Chimney		Appelez-nous	-
10	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
11	W11320407		Cover, Channel   (Replaces: W11106956)		Appelez-nous	-
12	W10145363		Duct, Primary Air (30 In)		Appelez-nous	-
13	W11175143		Gasket   (Replaces: W10919715)			Immediately	$ 24.62
	W10818235		Slope, Exhaust Vent (18 In)		Appelez-nous	-
	W11320598		Vent, Cooling Bottom (18 In)   (Replaces: W11113378)		Appelez-nous	-
	W11320597		Vent, Cooling Top (18 In)   (Replaces: W11113380)		Appelez-nous	-
	W10270402		Seal, Vent Slope (18 In)		Appelez-nous	-
	W10145364		Duct, Primary Air (18 In)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
