Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner, And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)

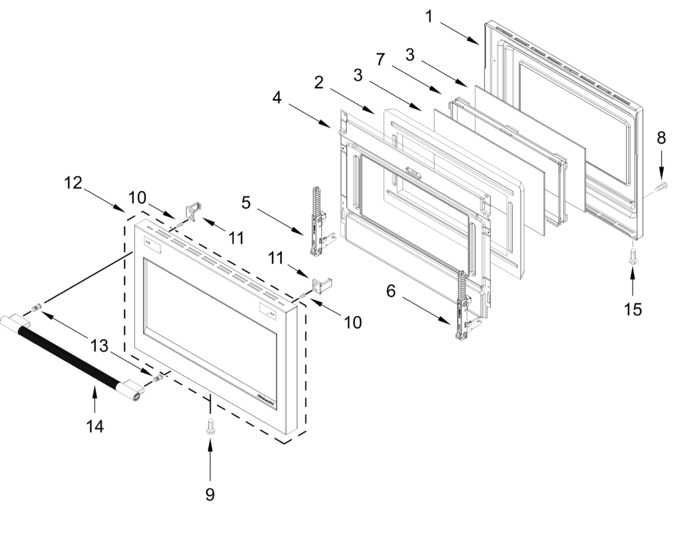

Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318831		Liner, Door   (Replaces: W11036771)			Immediately	$ 430.01
2	W11688537		Insulation, Door (30 In)   (Replaces: W11413190)				$ 125.80
3	W11318823		Glass, Inner   (Replaces: W11184409)				$ 175.72
4	W11318344		Retainer, Glass   (Replaces: W11194821)			Immediately	$ 184.62
5	W11643630		Hinge, Door (left)   (Replaces: W11390105)			Immediately	$ 195.56
6	W11643898		Hinge, Door (right)   (Replaces: W11390124)			Immediately	$ 142.45
7	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W10162096		Screw				$ 21.90
10	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
11	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
12	W11751884		Outer Door Assembly (wildflower)		Appelez-nous	-
13	W11773159		Stud   (Replaces: W11687274)				$ 29.86
14	W11789806		Handle Assembly (stainless)   (Replaces: W11732552)		Appelez-nous	-
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72

    View Diagram in Separate Window       Print Part List
