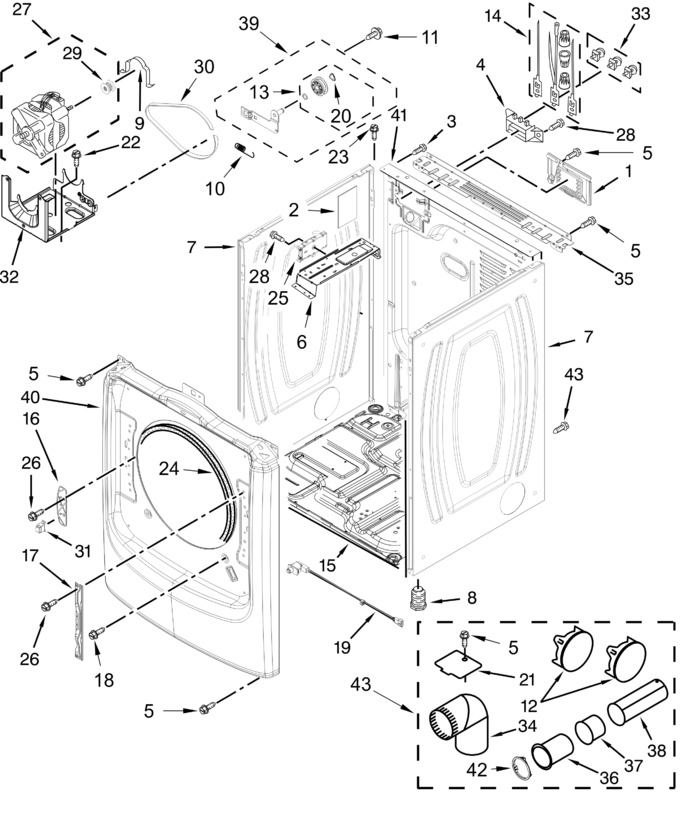

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 99.09 | |||||
| 2 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 22.63 | |||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.76 | |||||
| 4 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 23.02 | |||||
| 5 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 6 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 7 | W11233548 | Panel, Side (white) (Replaces: W10468495) |
|
$ 248.89 | |||||
| 8 | 49621 | Foot, Optional (set Of 2, Extended Length, Not Included With Appliance) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 71.98 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 100.99 | ||||
| 15 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 347.96 | |||||
| 16 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 41.77 | |||||
| 17 | W10315109 | Bracket, Door Hinge |
|
- | |||||
| 18 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 19 | W11427601 | Door Switch, Snap In (Replaces: W10688148) |
|
$ 72.89 | |||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.96 | |||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 23 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 24 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 25 | W11537223 | Board, Control (Replaces: W10847946) |
|
Immediately | $ 340.16 | ||||
| 26 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 27 | W11511154 | Assembly, Motor (Replaces: W10806760) |
|
Immediately | $ 269.07 | ||||
| 28 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 100.30 | ||||
| 31 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 87.83 | ||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 47.37 | ||||
| 34 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 26.82 | |||||
| 35 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 91.38 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 78.95 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 88.80 | |||||
| 39 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 40 | W11123144 | Panel, Front (white) (Replaces: W10651060) |
|
Immediately | $ 200.47 | ||||
| 41 | W10487431 | Panel, Rear |
|
$ 181.26 | |||||
| 42 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 81.62 | |||||
| 43 | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 85.68 | ||||
| ARI09FE66A6A3953B39D5F2A2DAA0239351 | Optional Parts Not Included |
|
- |
