Bulkhead Parts
Cabinet Parts
Door Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:

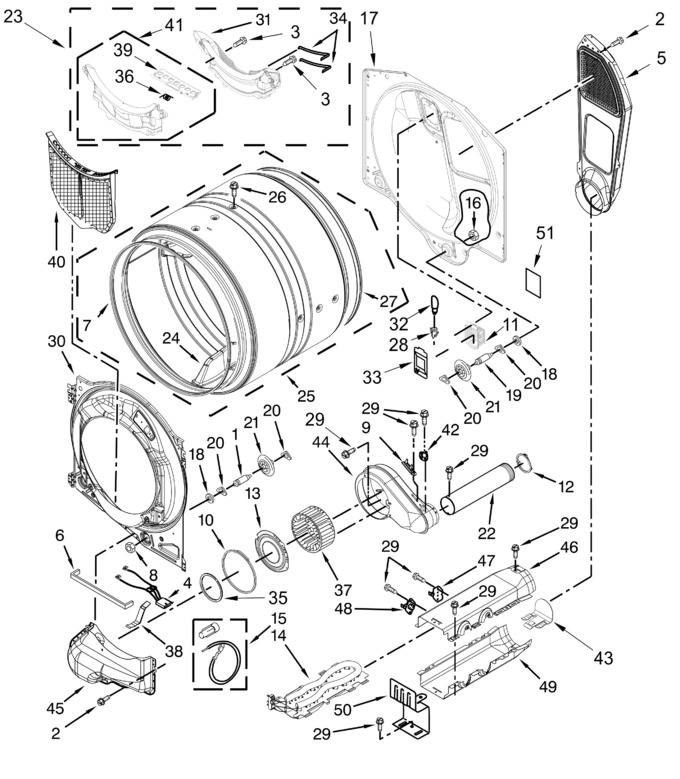

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller (right Hand Thread) (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | W11590579 | Screw (Replaces: W10794806) |
|
$ 14.03 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WP3387911 | Assembly, Air Duct (Replaces: 697354) |
|
$ 311.72 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 27.65 | ||||
| 7 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 21.54 | ||||
| 8 | W11812294 | Nut, Hex (right Hand Thread) (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 10 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 11 | 8578825 | Bracket, Drum Light |
|
$ 20.88 | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 81.62 | |||||
| 13 | W10211901 | Assembly, Collar |
|
$ 89.60 | |||||
| 14 | WP8544771 | Heater Element (Replaces: W10836011) |
|
Immediately | $ 119.29 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 247.75 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller (left Hand Thread) (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 132.76 | ||||
| 23 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10219012) |
|
Immediately | $ 276.56 | ||||
| 24 | W11841932 | Baffle, Drum (Replaces: W10416098) |
|
$ 38.06 | |||||
| 25 | W10508188 | Assembly, Drum (complete) |
|
$ 365.09 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 28 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 113.13 | ||||
| 29 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 30 | W11712678 | Bulkhead, Front (Replaces: W10673493) |
|
Immediately | $ 238.78 | ||||
| 31 | W11125442 | Grill, Outlet (Replaces: W10211903) |
|
$ 225.18 | |||||
| 32 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 33 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 21.32 | |||||
| 36 | W11678124 | Spring, Lint Screen Door (Replaces: W10726027) |
|
$ 14.29 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 59.07 | ||||
| 38 | W10414388 | Clip, Lint Duct |
|
$ 13.87 | |||||
| 39 | W11156832 | Door, Lint Screen (Replaces: W10219016) |
|
Immediately | $ 56.63 | ||||
| 40 | W11758174 | Lint Screen (Replaces: W10516085) |
|
Immediately | $ 52.12 | ||||
| 41 | W10905013 | Assembly, Housing And Door (Replaces: W10219013) |
|
$ 215.58 | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | 8544776 | Flange, Heater Box |
|
$ 18.10 | |||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 142.56 | ||||
| 45 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 209.24 | |||||
| 46 | WP8544769 | Housing Slot, Heater Box (Replaces: 8544769) |
|
$ 165.62 | |||||
| 47 | 279973 | Thermal Cut-off (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 48 | 280148 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 54.61 | ||||
| 49 | 8544770 | Housing Tab, Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 51 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 22.63 |
