SELECT A DIAGRAM
New Model Search:

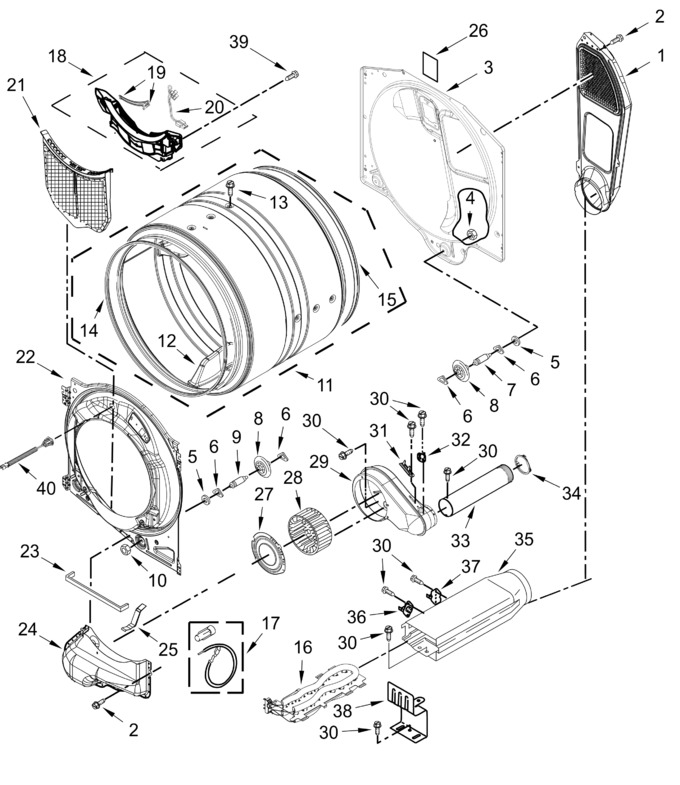

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11677720 | Assembly, Air Duct (Replaces: W11104018) |
|
$ 210.21 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | W11299300 | Bulkhead, Rear (Replaces: W11162462) |
|
$ 350.11 | |||||
| 4 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 5 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 6 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 7 | WPW10359271 | Shaft, Drum Roller (right Hand Thread) (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 8 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 9 | WPW10359272 | Shaft, Drum Roller (left Hand Thread) (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 10 | W11812294 | Nut, Hex (right Hand Thread) (Replaces: 3934666) |
|
$ 12.16 | |||||
| 11 | W10508188 | Assembly, Drum (complete) |
|
$ 365.09 | |||||
| 12 | W11841932 | Baffle, Drum (Replaces: W10416098) |
|
$ 38.06 | |||||
| 13 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 14 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 21.54 | ||||
| 15 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 16 | WP3387747 | Element, Heater 5400w (Replaces: W11344457) |
|
Immediately | $ 84.64 | ||||
| 17 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 18 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 276.56 | ||||
| 19 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 20 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 21 | W11758174 | Lint Screen (white) (Replaces: W11710644) |
|
Immediately | $ 52.12 | ||||
| 22 | W10673491 | Bulkhead, Front |
|
Immediately | $ 344.76 | ||||
| 23 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 27.65 | ||||
| 24 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 209.24 | |||||
| 25 | W10414388 | Clip, Lint Duct |
|
$ 13.87 | |||||
| 26 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 22.63 | |||||
| 27 | W11688571 | Assembly, Collar (includes Seal) (Replaces: W11655534) |
|
$ 91.93 | |||||
| 28 | W11823185 | Wheel, Blower (Replaces: W11803855) |
|
- | |||||
| 29 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 142.56 | ||||
| 30 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 31 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 32 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 33 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 132.76 | ||||
| 34 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 81.62 | |||||
| 35 | W10802681 | Assembly, Weld Heater Box (Replaces: W10891205) |
|
Immediately | $ 129.67 | ||||
| 36 | WP8557403 | Thermostat, Hi Limit (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 37 | 280148 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 54.61 | ||||
| 38 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 39 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 40 | W11310048 | Assembly, Drum Light (Replaces: W11203983) |
|
$ 115.16 |
