SELECT A DIAGRAM

Dryer Bulkhead Parts


Dryer Cabinet Parts


Dryer Door Parts


Optional Parts (not Included)


Tub And Basket Parts


Washer Cabinet Parts


Washer Dispenser Parts


Washer Door Parts


Washer/dryer Console Parts


Water System Parts

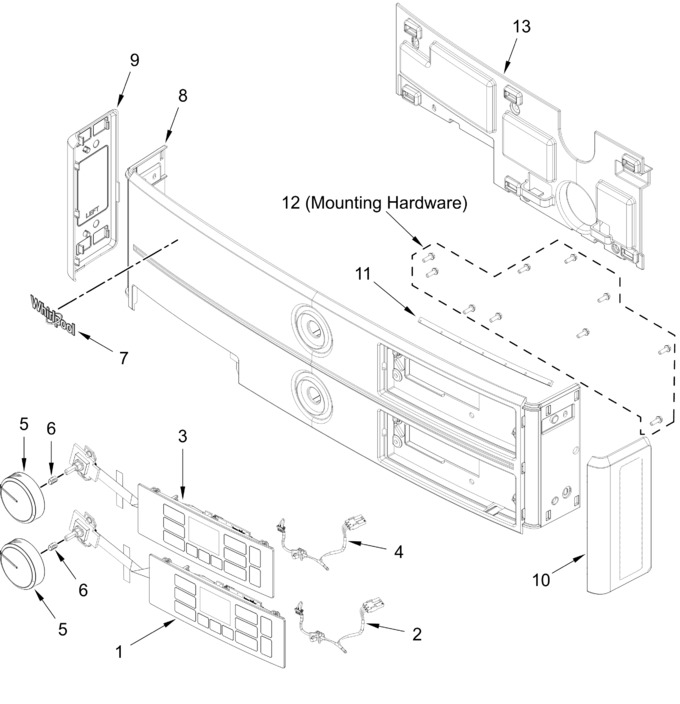

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11825325		Control Hmi, Washer   (Replaces: W11781417)		Appelez-nous	-
2	W11825326		Harness, Washer Hmi   (Replaces: W11813926)				$ 47.86
3	W11825327		Control Hmi, Dryer   (Replaces: W11781418)				$ 440.60
4	W11825328		Harness, Dryer Hmi   (Replaces: W11813921)		Appelez-nous	-
5	W11746647		Assembly, Knob   (Replaces: W11709754)				$ 43.11
6	W11788153		Clip, Spring   (Replaces: W11778059)		Appelez-nous	-
7	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 83.10
8	W11825323		Console, Washer/dryer   (Replaces: W11779813)		Appelez-nous	-
9	W11825369		End Cap (left)   (Replaces: W11790639)		Appelez-nous	-
10	W11825368		End Cap (right)   (Replaces: W11780610)		Appelez-nous	-
11	W11809843		Console, Seal (dryer Control Hmi)		Appelez-nous	-
12	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
13	W11825353		Rear Plate, Console   (Replaces: W11779811)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
