Base And Pedestal Unit Parts
Case, Gearing And Planetary Unit Parts
Color Variation Parts
Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

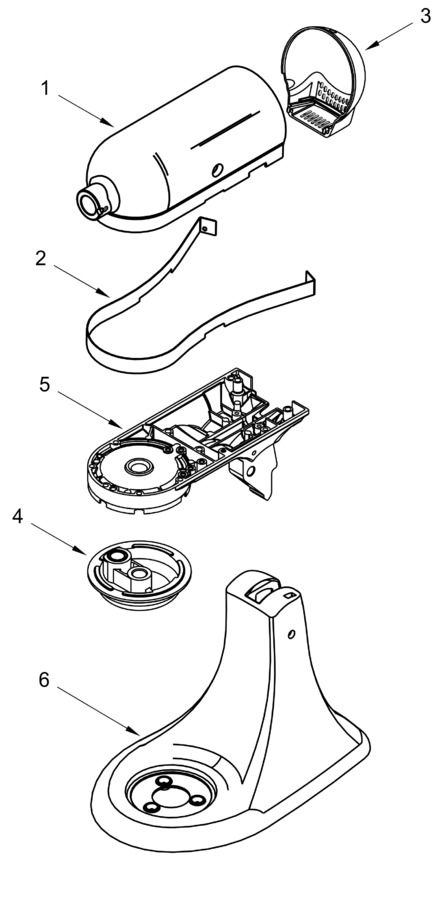

| 1 | W11604104 | Motor Housing (imperial Black) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | 9704805 | End Cover (imperial Black) |
|
- | |||||
| 4 | 9704797 | Planetary (imperial Black) |
|
- | |||||
| 5 | 9707103 | Lower Gearcase (imperial Black) |
|
- | |||||
| 6 | W10648651 | Pedestal With Feet And Headlock (imperial Black) |
|
- |
