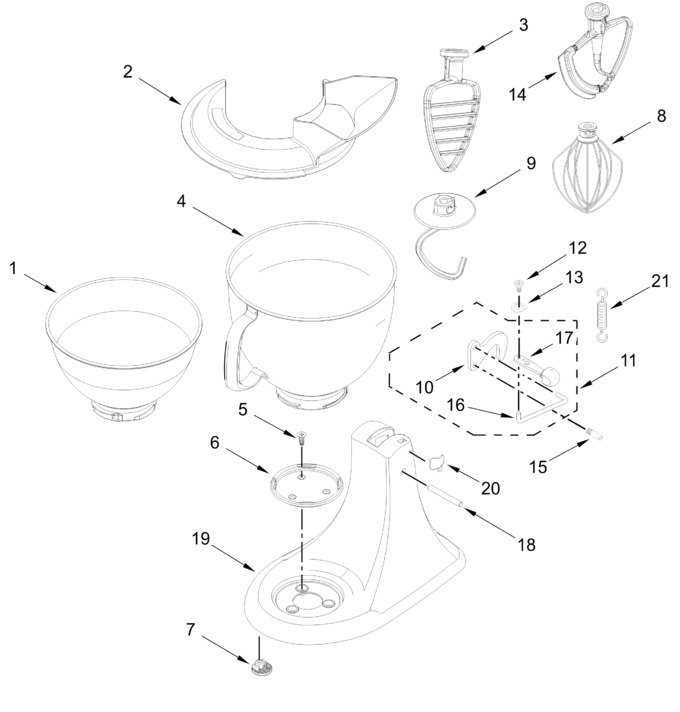

Base And Pedestal Unit Parts
Case, Gearing And Planetary Unit Parts
Color Variation Parts
Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11681930 | Bowl (3 Qt) (Replaces: W10713675) |
|
- | |||||
| 2 | W11573560 | Shield, Pouring (Replaces: W11385618) |
|
$ 40.76 | |||||
| 3 | WPW10672617 | Beater, Flat (coated) (Replaces: W10672617) |
|
Immediately | $ 24.92 | ||||
| 4 | W11324096 | Bowl (5 Qt) (Replaces: W10245282) |
|
$ 94.62 | |||||
| 5 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 6 | WPW10191926 | Cap, Bowl Screw (Replaces: W10191926) |
|
Immediately | $ 19.03 | ||||
| 7 | W11736697 | Foot (Replaces: W11626982) |
|
- | |||||
| 8 | WP9704329 | Whip, Wire (Replaces: 9704329) |
|
Immediately | $ 29.90 | ||||
| 9 | WPW10674618 | Hook, Dough (coated) (Replaces: W10674618) |
|
Immediately | $ 31.90 | ||||
| 10 | W11246352 | Latch (Replaces: 9709055) |
|
$ 8.57 | |||||
| 11 | WP3184200 | Latch, Link Assembly (black) (Replaces: 3184200) |
|
$ 13.44 | |||||
| 12 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | W10917788 | Beater, Flex Edge (Replaces: W10672622) |
|
$ 73.48 | |||||
| 15 | W10802060 | Screw (Replaces: W10572158) |
|
$ 5.21 | |||||
| 16 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 17 | WP9709267 | Lever, Latch (black) (Replaces: 9709267) |
|
$ 4.00 | |||||
| 18 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 19 | ARI78E3EA5DE827665772CF38F1975F320A | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| 20 | WP3184264 | Headlock, Snap (black) (Replaces: 3184264) |
|
$ 8.20 | |||||
| 21 | W11188450 | Spring, Lock Lever (Replaces: W10509949) |
|
- |
