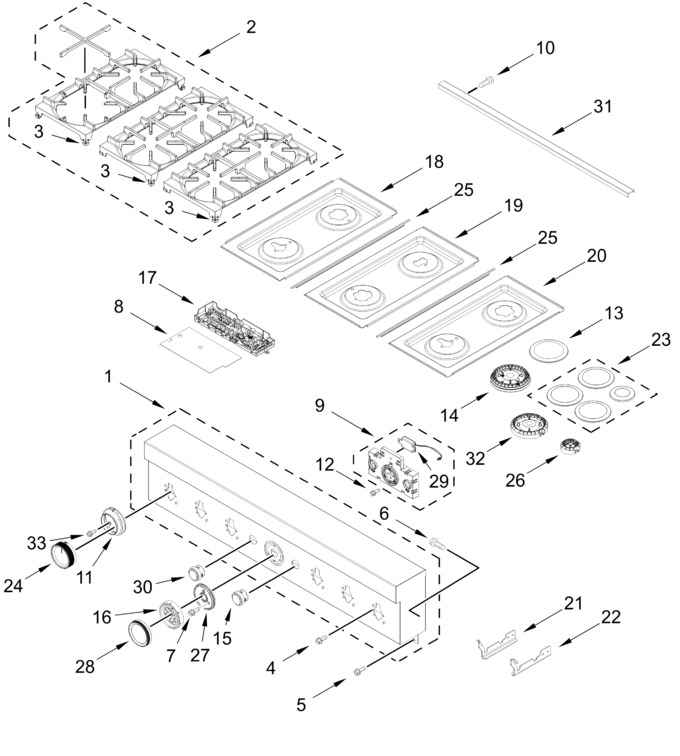

Burner Box And Orifice Holder Assembly Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11789688		Console Panel (stainless)   (Replaces: W11774892)		Appelez-nous	-
2	W11789234		Grate Burner Kit				$ 565.75
3	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
4	W11674763		Screw   (Replaces: W10919387)				$ 14.76
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
7	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11790527		User Interface   (Replaces: W11777685)				$ 465.97
10	7101P33860		Screw		Appelez-nous	-
11	W11819790		Bezel Assembly, Gas Burner (stainless)   (Replaces: W11801796)		Appelez-nous	-
12	W10162096		Screw				$ 21.90
13	W11576413		Cap, Stack Burner (black)   (Replaces: W11346163)				$ 89.25
14	W11436986		Flame Spreader, Stack   (Replaces: W11348511)			Immediately	$ 71.73
15	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
16	W11789785		Knob, Oven Mode (stainless)   (Replaces: W11738550)		Appelez-nous	-
17	W11790544		Appliance Manager, Powermax   (Replaces: W11767302)				$ 409.76
18	W11788773		Panel, Left Cooktop (black)   (Replaces: W11758655)		Appelez-nous	-
19	W11789677		Panel, Center Cootkop (black)   (Replaces: W11758657)				$ 425.24
20	W11789679		Panel, Right Cooktop (black)   (Replaces: W11758658)		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W10130759		Bracket, Moving Console (right)				$ 75.94
23	W11789675		Cap, Burner (black, Set Of 4)   (Replaces: W11748806)		Appelez-nous	-
24	W11788781		Knob, Dual (stainless)   (Replaces: W11732024)				$ 87.79
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72
27	W11788782		Bezel Assembly, Oven (stainless)   (Replaces: W11738551)		Appelez-nous	-
28	W11788784		Knob, Oven Temperature (stainless)   (Replaces: W11740403)				$ 61.29
29	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
30	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
31	W11156416		Trim, Island				$ 249.31
32	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
33	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
	W11788780		Knob, Single (stainless)   (Replaces: W11731284)				$ 52.49
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12		(center Rear)		Appelez-nous	-
	ARID5FC0C9D80A03900EBB467174EE74F38		(left Rear, Center Front, Right Rear)		Appelez-nous	-
	ARI5F3F33C66B028760CF46AC61DE6BE21E		(left Rear, Center Front, Center Rear, Right Rear)		Appelez-nous	-
