Diagram for Burner Box And Orifice Holder Assembly Parts
Burner Box And Orifice Holder Assembly Parts

Diagram for Chassis Parts
Chassis Parts

Diagram for Cooktop, Burner And Grate Parts
Cooktop, Burner And Grate Parts

Diagram for Internal Oven Parts
Internal Oven Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11320407 Cover, Channel   (Replaces: W11106956) Appelez-nous -
2 W11320402 Vent, Cooling Top (30 In)   (Replaces: W11105223) Special Order $ 139.98

3 W11248652 Blower   (Replaces: W11200129) In-Stock Immediately $ 241.54

4 W11320403 Vent, Cooling Bottom (30 In)   (Replaces: W11105222) Appelez-nous -
5 W11320405 Plate, Cooling Latch   (Replaces: W11109518) Appelez-nous -
6 WP9759877 Retainer, Strain Relief   (Replaces: 9759877) Special Order $ 20.21

7 7101P42660 Screw Appelez-nous -
8 W11047754 Bracket, Blower Mount Appelez-nous -
9 W10145363 Duct, Primary Air (30 In) Appelez-nous -
10 WP9761958 Block, Terminal   (Replaces: 9761958) In-Stock Immediately $ 47.96

11 W10818234 Slope, Exhaust Vent (30 In) Appelez-nous -
12 W10270397 Seal, Vent Slope (30 In) Appelez-nous -
13 W10270396 Seal, Chimney Appelez-nous -
14 W11175143 Gasket   (Replaces: W10919715) In-Stock Immediately $ 24.62

15 WP3400015 Screw, Grounding   (Replaces: 3400015) Special Order $ 7.55

16 W11353392 Box, Terminal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

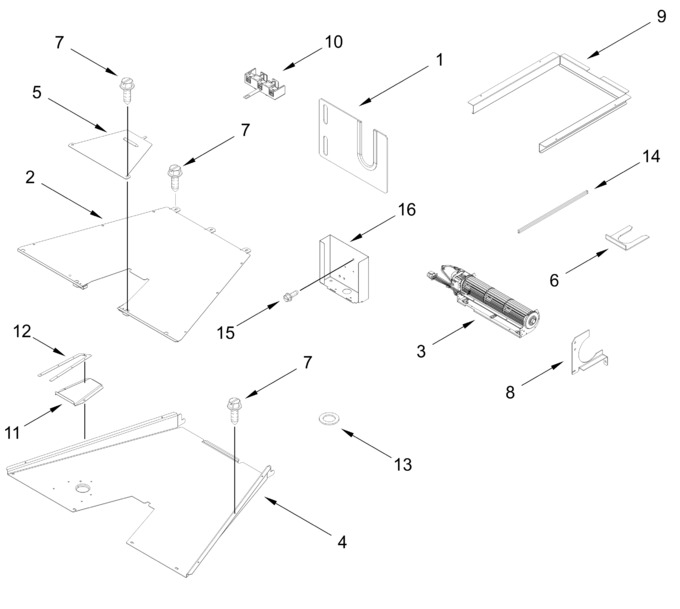

Diagram for KFDS936SDC00
