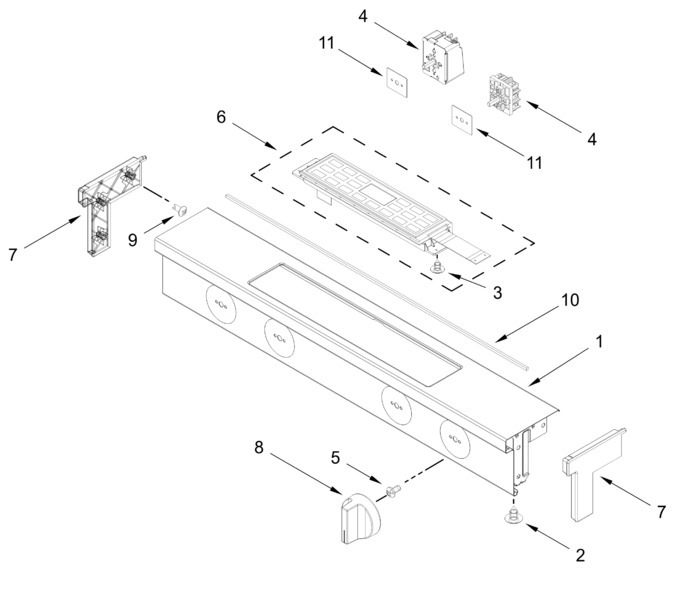

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11781574		Console (white)   (Replaces: W11698942)				$ 409.15
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
4	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
5	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
6	W11813677		User Interface   (Replaces: W11785663)				$ 465.97
7	W11747781		Endcap (white, Left)   (Replaces: W11420181)				$ 67.37
8	W11781575		Knob (white, Single)   (Replaces: W11730758)		Appelez-nous	-
9	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
10	W11747383		Gasket Cooktop, Console   (Replaces: W11401890)				$ 44.56
11	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	W11781576		Knob (white, Dual)   (Replaces: W11730759)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11747782		Endcap (white, Right)   (Replaces: W11420179)				$ 67.37
