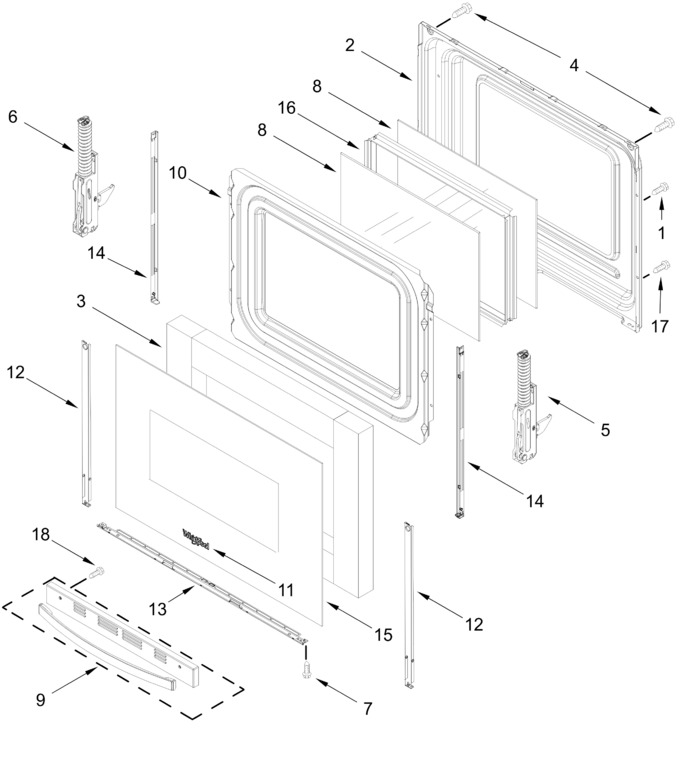

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 5 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 6 | WPW10440013 | Hinge, Door (active, Full Glass) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 7 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 9 | W11726984 | Handle And Vent Assembly (white) (Replaces: W11353053) |
|
Immediately | $ 185.93 | ||||
| 10 | W11809823 | Retainer, Insulation (Replaces: W11788182) |
|
- | |||||
| 11 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 12 | WP8523172 | Trim, Door Side (white, Left) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W11594186 | Trim, Bottom Door (white) (Replaces: W11444042) |
|
Immediately | $ 61.37 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | W11741358 | Glass, Outer Door (white) (Replaces: W11729637) |
|
Immediately | $ 183.52 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 18 | W10896982 | Screw (Replaces: W10465158) |
|
$ 8.40 | |||||
| WP8523166 | Trim, Door Side (white, Right) (Replaces: 8523166) |
|
Immediately | $ 84.23 |
