Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts

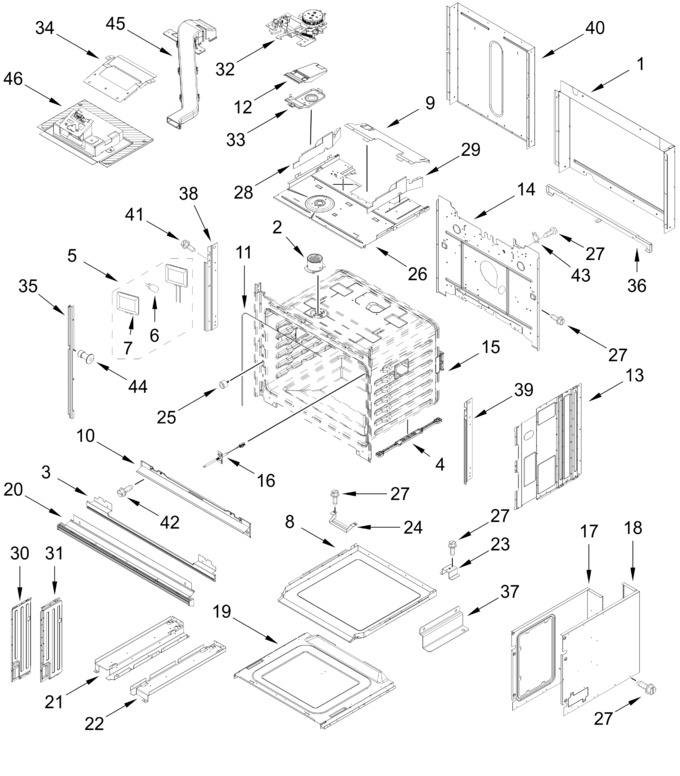

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11171004		Cover, Combo Chassis Back Duct				$ 71.00
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 24.32
3	W11714646		Trim, Bottom Vent (black)   (Replaces: W11624689)				$ 86.03
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 17.28
5	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 102.36
6	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
7	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 91.74
8	W11244446		Duct, Bottom Chassis				$ 66.90
9	W11818385		Deflector, Blower   (Replaces: W11694214)		Appelez-nous	-
10	W11818386		Vent, 30 In Center   (Replaces: W11771661)		Appelez-nous	-
11	W11692454		Gasket   (Replaces: W11608108)				$ 139.92
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 77.13
14	W11223327		Back, Chassis		Appelez-nous	-
15	ARIF1DCB018B2324CAD9D04009CD738647B		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11758691		Probe, Sensor   (Replaces: W11685697)				$ 32.26
17	W11754871		Side, Combo Chassis (left)   (Replaces: W11717606)		Appelez-nous	-
18	W11244451		Side, Combo Chassis (right)		Appelez-nous	-
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 72.25
20	W11467336		Bottom Vent Assembly (black)				$ 191.22
21	W11818384		Support, Base (left)   (Replaces: W11738531)		Appelez-nous	-
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 34.43
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 37.00
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 22.26
26	W11818382		Top, Chassis   (Replaces: W11694204)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	W11186391		Deflector, Chassis (left)		Appelez-nous	-
29	W11186398		Deflector, Chassis (right)		Appelez-nous	-
30	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 70.53
31	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 70.53
32	W11811612		Latch, Motorized   (Replaces: W11655005)			Immediately	$ 66.53
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	W11818394		Cover, Insulation   (Replaces: W11694215)		Appelez-nous	-
35	W11235457		Trim, Left Side (black)				$ 75.92
36	W10283022		Support, Crossbar				$ 77.45
37	W11818393		Bracket, Side   (Replaces: W11751065)		Appelez-nous	-
38	W11627410		Siderail, Combo (left)				$ 58.76
39	W11627411		Siderail, Combo (right)				$ 56.77
40	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
41	7101P63360		Screw (black)		Appelez-nous	-
42	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.19
43	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
44	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
45	W11818395		Combo Blower Duct Assembly   (Replaces: W11738776)		Appelez-nous	-
46	W11818652		Camera Module Assembly   (Replaces: W11626903)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
	W11235458		Trim, Right Side (black)				$ 75.92
	W11818396		Insulation, Cavity   (Replaces: W11704930)		Appelez-nous	-
