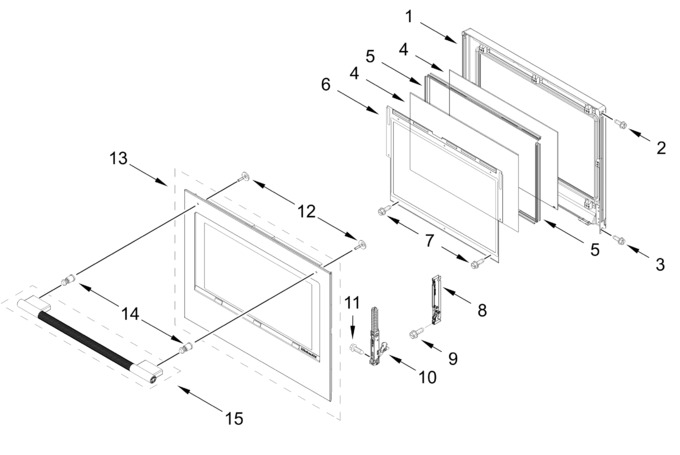

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11768649		Liner Assembly   (Replaces: W11699126)			Immediately	$ 289.34
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 14.07
4	WPW10618107		Glass, Inner   (Replaces: W10618107)				$ 235.91
5	W11736671		Spacer, Air Divider   (Replaces: W11647160)			Immediately	$ 68.66
6	W11598182		Retainer, Air Divider Glass   (Replaces: W11174095)			Immediately	$ 77.65
7	7101P42660		Screw		Appelez-nous	-
8	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 81.51
9	WPW10254050		Screw   (Replaces: W10254050)				$ 8.11
10	W11781372		Hinge, Door (left)   (Replaces: W11755837)			Immediately	$ 130.32
11	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.75
12	W11749091		Screw (black)   (Replaces: W11707001)				$ 11.75
13	W11795854		Oven Door Assembly (black Ore)   (Replaces: W11680684)		Appelez-nous	-
14	W11773159		Stud, Handle   (Replaces: W11804271)				$ 28.44
15	W11783624		Handle (black Ore)   (Replaces: W11680263)		Appelez-nous	-
	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 81.45
	W11781373		Hinge, Door (right)   (Replaces: W11755838)				$ 120.79
