Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11820192 Console Panel (black Ore)   (Replaces: W11768477) Appelez-nous -
2 W11789234 Grate Burner Kit Special Order $ 565.75

3 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

4 W11674763 Screw   (Replaces: W10919387) Special Order $ 14.76

5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

6 3196265 Screw   (Replaces: 3400099) Appelez-nous -
7 W11788785 Screw   (Replaces: W11755190) Appelez-nous -
8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11790527 User Interface   (Replaces: W11777685) Special Order $ 465.97

10 7101P33860 Screw Appelez-nous -
11 W11820146 Bezel Assembly, Gas Burner (black Ore)   (Replaces: W11801797) Appelez-nous -
12 W10162096 Screw Special Order $ 21.90

13 W11576413 Cap, Stack Burner (black)   (Replaces: W11346163) Special Order $ 89.25

14 W11436986 Flame Spreader, Stack   (Replaces: W11348511) In-Stock Immediately $ 71.73

15 W11820147 Button Assembly, Oven Start (black Ore)   (Replaces: W11769831) Appelez-nous -
16 W11821252 Knob, Oven Mode (black Ore)   (Replaces: W11731059) Appelez-nous -
17 W11790544 Appliance Manager, Powermax   (Replaces: W11767302) Special Order $ 409.76

18 W11788773 Panel, Left Cooktop (black)   (Replaces: W11758655) Appelez-nous -
19 W11789677 Panel, Center Cootkop (black)   (Replaces: W11758657) Special Order $ 425.24

20 W11789679 Panel, Right Cooktop (black)   (Replaces: W11758658) Appelez-nous -
21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

23 W11789675 Cap, Burner (black, Set Of 4)   (Replaces: W11748806) Appelez-nous -
24 W11820149 Knob, Dual (black Ore)   (Replaces: W11732026) Appelez-nous -
25 W10271524 Trim, T-strip (black) Special Order $ 212.34

26 W11531098 Flame Spreader   (Replaces: W11352197) Special Order $ 80.72

27 W11820163 Bezel Assembly, Oven (black Ore)   (Replaces: W11738553) Appelez-nous -
28 W11820164 Knob, Oven Temperature (black Ore)   (Replaces: W11740404) Appelez-nous -
29 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

30 W11820165 Button Assembly, Oven Light (black Ore)   (Replaces: W11769833) Appelez-nous -
31 W11156416 Trim, Island Special Order $ 249.31

32 W11531096 Flame Spreader   (Replaces: W11352193) Special Order $ 81.92

ARI68146C2FADA8E1AE3122F181AC9275E2 (left Front, Right Front) Appelez-nous -
W11820150 Knob, Single (black Ore)   (Replaces: W11731286) Appelez-nous -
W10130759 Bracket, Moving Console (right) Special Order $ 75.94

ARID5FC0C9D80A03900EBB467174EE74F38 (left Rear, Center Front, Right Rear) Appelez-nous -
ARI5F3F33C66B028760CF46AC61DE6BE21E (left Rear, Center Front, Center Rear, Right Rear) Appelez-nous -
ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 (center Rear) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

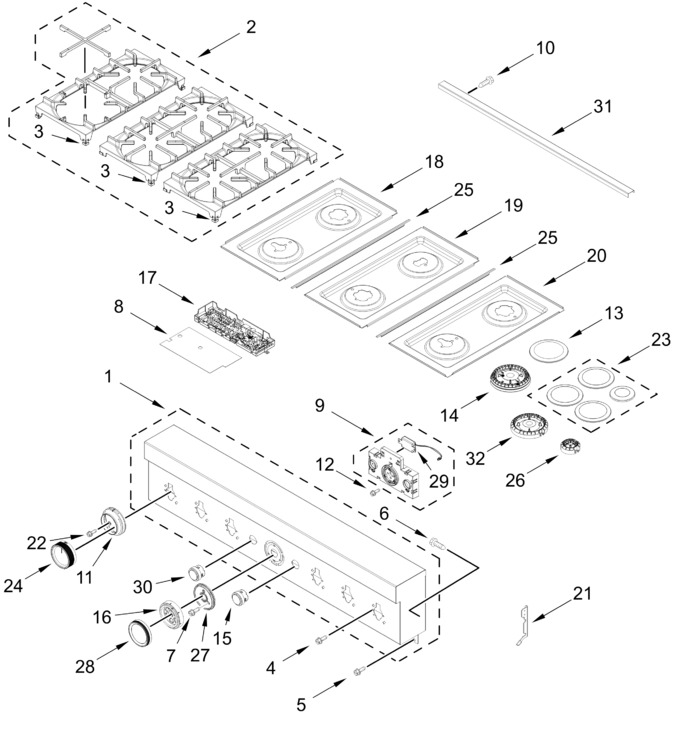

Diagram for KFDS936SBE00
