Burner Box And Orifice Holder Assembly Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts

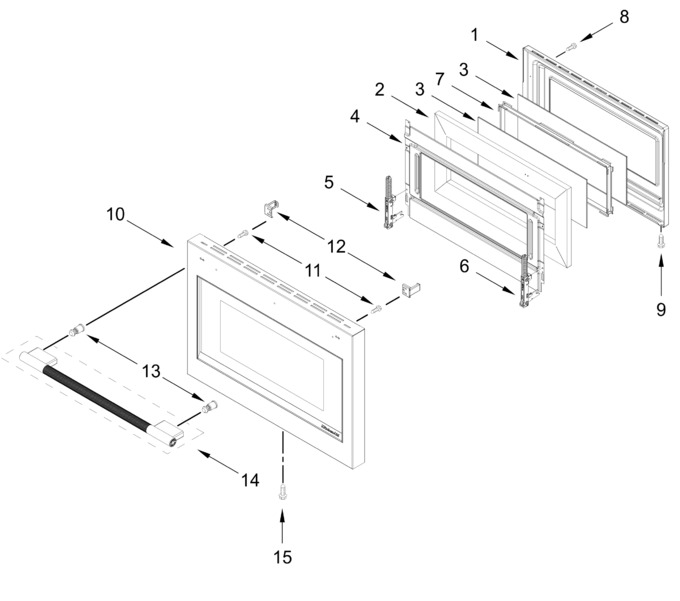

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11334152		Liner, Door   (Replaces: W11036772)				$ 417.57
2	W11688331		Insulation, Door   (Replaces: W10884823)				$ 46.39
3	W11334153		Glass, Inner   (Replaces: W11036791)				$ 125.70
4	W11194820		Retainer, Glass				$ 190.50
5	W11822565		Hinge, Door (dual)   (Replaces: W11807687)		Appelez-nous	-
6	W11822566		Hinge, Door (dampened)   (Replaces: W11807689)		Appelez-nous	-
7	W11194814		Frame, Glass			Immediately	$ 349.83
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W11193480		Screw   (Replaces: W10607120)				$ 14.72
10	W11751892		Outer Door Assembly (black Ore)		Appelez-nous	-
11	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
12	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
13	W11773159		Stud   (Replaces: W11687274)				$ 29.86
14	W11820167		Handle Assembly (black Ore)   (Replaces: W11732562)		Appelez-nous	-
15	W10162096		Screw				$ 21.90
